FAG WS22216-E1-XL-2RSR sealed spherical roller bearings
Also known as : WS22216-E1-XL-2RSR
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 40 mm
- Basic dynamic load rating: 250 kN
- Basic static load rating: 270 kN
FAG WS22216-E1-XL-2RSR Bearing

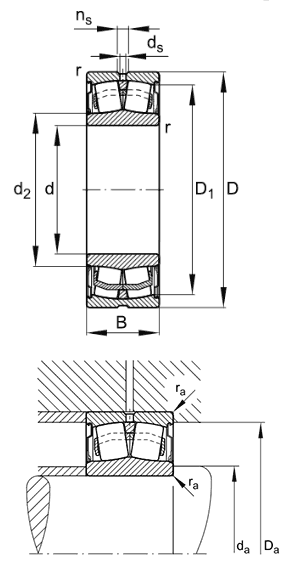

FAG WS22216-E1-XL-2RSR Bearing details
| Number | WS22216-E1-XL-2RSR | |
|---|---|---|
| Type |
Sealed spherical roller bearings lip seals on both sides |
|
| d | 80mm | |
| D | 140mm | |
| B | 40mm | |
| D1 | 128,6mm | |
| Da max | 129mm | |
| d2 | 91,3mm | |
| da min | 91mm | |
| ds | 3,2mm | |
| ns | 6,5mm | |
| ra max | 2mm | |
| rmin | 2mm | |
| m | 2,7kg | Mass |
| Cr | 250000N | Basic dynamic load rating, radial |
| C0r | 270000N | Basic static load rating, radial |
| Cur | 34500N | Fatigue limit load, radial |
| nG | 15401/min | Limiting speed |
| e | 0,22 | |
| Y1 | 3,14 | |
| Y2 | 4,67 | |
| Y0 | 3,07 |
Nodes bearings have FAG WS22216-E1-XL-2RSR bearings in stock. WS22216-E1-XL-2RSR, sealed spherical roller bearings, lip seals on both sides.
