SKF 22216E/C3 Bearing

SKF 22216E/C3 spherical roller bearings

Also known as : 22216E/C3, 22216-E1-C3

  • Inside Diameter: 80 mm
  • Outside Diameter: 140 mm
  • Width: 33 mm
  • Basic dynamic load rating: 243 kN
  • Basic static load rating: 270 kN

Inquire Now


SKF 22216E/C3 Bearing

SKF 22216E/C3 Bearing details

model 22216E/C3
d 80 mm
D 140 mm
B 33 mm
d2 94.7 mm
D1 124 mm
b 6 mm
K 3 mm
r1,2 min. 2 mm

da min 91 mm
Da max 129 mm
ra max 2 mm

C 243 kN, Basic dynamic load rating
C0 270 kN, Basic static load rating
Pu 29 kN, Fatigue load limit
Reference speed 4300 r/min
Limiting speed 6000 r/min
e 0.22, Calculation factor
Y1 3, Calculation factor
Y2 4.6, Calculation factor
Y0 2.8, Calculation factor
Mass 2.1 kg

SKF 22216E/C3 roller bearings, SKF Explorer, C3 internal clearance, Spherical roller bearings.

SKF 22216E/C3 bearing cross reference

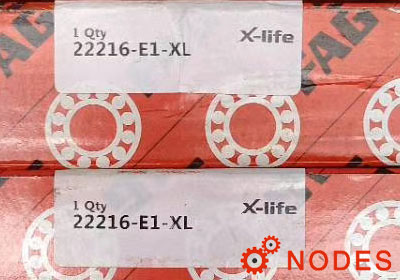

FAG 22216-E1-XL bearing
80mm x 140mm x 33mm
NSK 22216EAE4 bearing
80mm x 140mm x 33.0mm
NSK 22216EAKE4 bearing
80mm x 140mm x 33.0mm
FAG 22216-E1-XL-K bearing
80mm x 140mm x 33mm
NTN 22216EAD1 bearing
80mm x 140mm x 33mm
NTN 22216EMD1 bearing
80mm x 140mm x 33mm
NTN 22216EAKD1 bearing
80mm x 140mm x 33mm
NTN 22216EMKD1 bearing
80mm x 140mm x 33mm
