IKO CF10BUU cam followers
Also known as : CF10BUU, KR22-PP
- D: 22 mm
- d1: 10 mm
- C: 12 mm
- Cr: 5.43 kN
- C0r: 6.89 kN
IKO CF10BUU

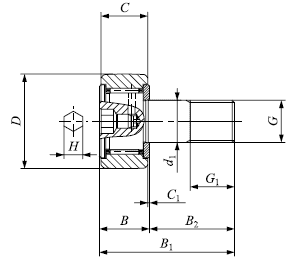

IKO CF10BUU Cam Follower Bearing details
| model |
CF10BUU Cylindrical outer ring |
|---|---|
| D | 22 mm |
| C | 12 mm |
| d1 | 10 mm |
| G | M10x1.25 |
| G1 | 12 mm |
| B | 13.2max mm |
| B1 | 36.2max mm |
| B2 | 23 mm |
| B3 | - mm |
| C1 | 0.6 mm |
| g1 | - mm |
| g2 | - mm |
| H | 4 mm |
| rs min | 0.3 mm |
| fmin | 16 mm, Mounting dimension |
| Maximum tightening torque | 13.8 N.m |
| C | 5430 N, Basic dynamic load rating |
| C0 | 6890 N, Basic static load rating |
| Maximum allowable load | 6890 N |
| Mass | 45 g (approx.) |
IKO CF10BUU cam followers, Cam follower bearings, Cylindrical outer ring, Sealed type.
IKO CF10BUU bearing cross reference

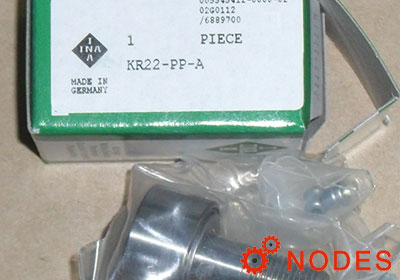

INA KR22-PP bearing
D:22mm, d1:10mm, B:36mm

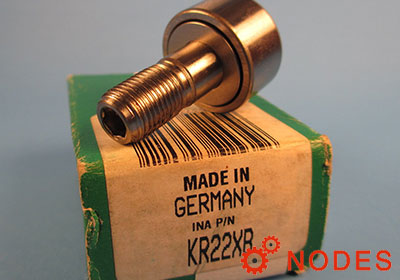

INA KR22 bearing
D:22mm, d1:10mm, B:36mm
IKO CF10BR bearing
D:22mm, d1:10mm, C:12mm
IKO CF10B bearing
D:22mm, d1:10mm, C:12mm
IKO CF10BUUR bearing
D:22mm, d1:10mm, C:12mm
IKO CF10FBR bearing
D:22mm, d1:10mm, C:12mm
IKO CF10FBUUR bearing
D:22mm, d1:10mm, C:12mm
