SKF KR22PPA cam followers | Dimensions D:22mm, d:10mm, B:36m
Also known as : KR22PPA
- D: 22 mm
- d: 10 mm
- B: 36 mm
- Cr: 4.4 kN
- C0r: 5 kN
SKF KR22PPA Bearing
SKF KR22PPA Bearing details
| Number | KR 22 PPA |
|---|---|
| Type | SKF cam follower |

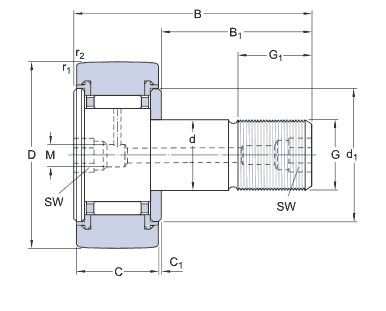

| Dimensions | |
| D | 22 mm |
| d | 10 mm |
| B | 36 mm |
| C | 12 mm |
| B1 | 23 mm |
| C1 | 0.6 mm |
| d1 | 17.5 mm |
| G | M 10x1 |
| G1 | 12 mm |
| M | 5 mm |
| r1,2 min | 0.3 mm |
| Calculation data | |
| Basic dynamic load rating, C | 4.4 KN |
| Basic static load rating, C0 | 5 KN |
| Fatigue load limit, Pu | 0.56 KN |
| Maximum dynamic radial loads, Fr max. | 4.25 KN |
| Maximum static radial loads, F0r max. | 6 KN |
| Limiting speed | 5300 r/min |
| Mounting information | |
| Recommended tighthening torque | 15 N.M |
| Included products | |
| Grease fitting | NIP A1x4.5 |
| Hexagonal nut | M 10x1 |
| Mass | |
| Mass cam follower | 0.043 kg |
SKF KR22PPA bearing cross reference
INA KR22-PP bearing
D:22mm, d1:10mm, B:36mm
INA KR22 bearing
D:22mm, d1:10mm, B:36mm
IKO CF10BR bearing
D:22mm, d1:10mm, C:12mm
IKO CF10B bearing
D:22mm, d1:10mm, C:12mm
IKO CF10BUUR bearing
D:22mm, d1:10mm, C:12mm
IKO CF10BUU bearing
D:22mm, d1:10mm, C:12mm
IKO CF10FBR bearing
D:22mm, d1:10mm, C:12mm
IKO CF10FBUUR bearing
D:22mm, d1:10mm, C:12mm
SKF KRV22PPA bearing
D:22mm, d:10mm, B:36mm
