SKF KRV22PPA cam followers | Dimensions D:22mm, d:10mm, B:36
Also known as : KRV22PPA
- D: 22 mm
- d: 10 mm
- B: 36 mm
- Cr: 6.05 kN
- C0r: 9.15 kN
SKF KRV22PPA Bearing
SKF KRV22PPA Bearing details
| Number | KRV 22 PPA |
|---|---|
| Type | SKF cam follower with an axial sliding ring on both sides, full complement needle roller set |

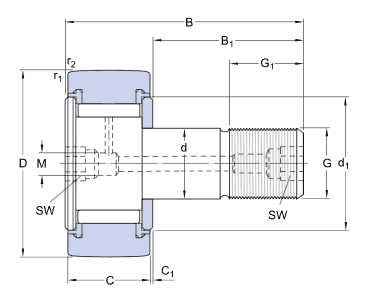

| Dimensions | |
| D | 22 mm |
| d | 10 mm |
| B | 36 mm |
| C | 12 mm |
| B1 | 23 mm |
| C1 | 0.6 mm |
| d1 | 17.5 mm |
| G | M 10x1 |
| G1 | 12 mm |
| M | 4 mm |
| SW | 5 mm |
| r1,2 min | 0.3 mm |
| Calculation data | |
| Basic dynamic load rating, C | 6.05 KN |
| Basic static load rating, C0 | 9.15 KN |
| Fatigue load limit, Pu | 1.04 KN |
| Maximum dynamic radial loads, Fr max. | 5.7 KN |
| Maximum static radial loads, F0r max. | 8.15 KN |
| Limiting speed | 3600 r/min |
| Mounting information | |
| Recommended tighthening torque | 15 N.M |
| Included products | |
| Grease fitting | NIP A1x4.5 |
| Hexagonal nut | M 10x1 |
| Mass | |
| Mass cam follower | 0.045 kg |
