IKO rod ends bearings, PILLOBALLS

IKO rod ends bearings, PILLOBALLs

IKO PILLOBALLs are compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time.

IKO rod ends bearing are classified by sliding surface types, namely, insert type, die-cast type and maintenance- free type. In the insert type, a spherical inner ring makes contact with the special copper alloy bushing with superior run-in properties. In the die-cast type, a spherical inner ring makes direct contact with the bore surface of the body of special zinc die-cast alloy. In the maintenance-free type, a spherical inner ring makes contact with the special PTFE liner of maintenance-free type. Thus, a smooth rotational and oscillatory motion can be achieved with superior anti-wear and loading properties in each type.

Displaying 86 IKO rod ends bearings.

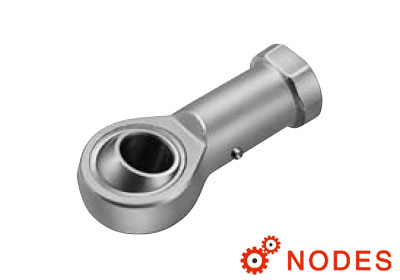

IKO PHS5 rod ends | d:5,d2:16,l4:35mm IKO

IKO PHS5 rod ends | d:5,d2:16,l4:35mm

IKO PHS5 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:5mm, d2:16mm, l4:35mm.

Inquire Now

  • Brand: IKO
  • d: 5 mm
  • d2: 16 mm
  • Height: 35 mm
  • Basic dynamic load rating: 3.27 kN
  • Basic static load rating: 3.27 kN
IKO PHS6 rod ends | d:6,d2:18,l4:39mm IKO

IKO PHS6 rod ends | d:6,d2:18,l4:39mm

IKO PHS6 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:6mm, d2:18mm, l4:39mm.

Inquire Now

  • Brand: IKO
  • d: 6 mm
  • d2: 18 mm
  • Height: 39 mm
  • Basic dynamic load rating: 4.2 kN
  • Basic static load rating: 4.2 kN
IKO PHS8 rod ends | d:8,d2:22,l4:47mm IKO

IKO PHS8 rod ends | d:8,d2:22,l4:47mm

IKO PHS8 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:8mm, d2:22mm, l4:47mm.

Inquire Now

  • Brand: IKO
  • d: 8 mm
  • d2: 22 mm
  • Height: 47 mm
  • Basic dynamic load rating: 7.01 kN
  • Basic static load rating: 7.01 kN
IKO PHS10 rod ends | d:10,d2:26,l4:56mm IKO

IKO PHS10 rod ends | d:10,d2:26,l4:56mm

IKO PHS10 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:10mm, d2:26mm, l4:56mm.

Inquire Now

  • Brand: IKO
  • d: 10 mm
  • d2: 26 mm
  • Height: 56 mm
  • Basic dynamic load rating: 9.81 kN
  • Basic static load rating: 9.81 kN
IKO PHS12 rod ends | d:12,d2:30,l4:65mm IKO

IKO PHS12 rod ends | d:12,d2:30,l4:65mm

IKO PHS12 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:12mm, d2:30mm, l4:65mm.

Inquire Now

  • Brand: IKO
  • d: 12 mm
  • d2: 30 mm
  • Height: 65 mm
  • Basic dynamic load rating: 13.1 kN
  • Basic static load rating: 13.1 kN
IKO PHS14 rod ends | d:14,d2:34,l4:74mm IKO

IKO PHS14 rod ends | d:14,d2:34,l4:74mm

IKO PHS14 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:14mm, d2:34mm, l4:74mm.

Inquire Now

  • Brand: IKO
  • d: 14 mm
  • d2: 34 mm
  • Height: 74 mm
  • Basic dynamic load rating: 16.8 kN
  • Basic static load rating: 16.8 kN
IKO PHS16 rod ends | d:16,d2:38,l4:83mm IKO

IKO PHS16 rod ends | d:16,d2:38,l4:83mm

IKO PHS16 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:16mm, d2:38mm, l4:83mm.

Inquire Now

  • Brand: IKO
  • d: 16 mm
  • d2: 38 mm
  • Height: 83 mm
  • Basic dynamic load rating: 21 kN
  • Basic static load rating: 21 kN
IKO PHS18 rod ends | d:18,d2:42,l4:92mm IKO

IKO PHS18 rod ends | d:18,d2:42,l4:92mm

IKO PHS18 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:18mm, d2:42mm, l4:92mm.

Inquire Now

  • Brand: IKO
  • d: 18 mm
  • d2: 42 mm
  • Height: 92 mm
  • Basic dynamic load rating: 25.7 kN
  • Basic static load rating: 25.7 kN
IKO PHS20 rod ends | d:20,d2:46,l4:100mm IKO

IKO PHS20 rod ends | d:20,d2:46,l4:100mm

IKO PHS20 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:20mm, d2:46mm, l4:100mm.

Inquire Now

  • Brand: IKO
  • d: 20 mm
  • d2: 46 mm
  • Height: 100 mm
  • Basic dynamic load rating: 30.8 kN
  • Basic static load rating: 30.8 kN
IKO PHS25 rod ends | d:25,d2:60,l4:124mm IKO

IKO PHS25 rod ends | d:25,d2:60,l4:124mm

IKO PHS25 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:25mm, d2:60mm, l4:124mm.

Inquire Now

  • Brand: IKO
  • d: 25 mm
  • d2: 60 mm
  • Height: 124 mm
  • Basic dynamic load rating: 46.2 kN
  • Basic static load rating: 46.2 kN
IKO PHS28 rod ends | d:28,d2:66,l4:136mm IKO

IKO PHS28 rod ends | d:28,d2:66,l4:136mm

IKO PHS28 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:28mm, d2:66mm, l4:136mm.

Inquire Now

  • Brand: IKO
  • d: 28 mm
  • d2: 66 mm
  • Height: 136 mm
  • Basic dynamic load rating: 58.4 kN
  • Basic static load rating: 58.4 kN

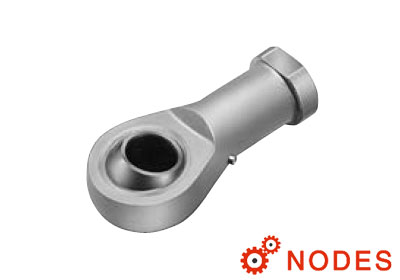

IKO PHSA5 rod ends | d:5,d2:17,l4:35.5mm IKO

IKO PHSA5 rod ends | d:5,d2:17,l4:35.5mm

IKO PHSA5 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:5mm, d2:17mm, l4:35.5mm.

Inquire Now

  • Brand: IKO
  • d: 5 mm
  • d2: 17 mm
  • Height: 35.5 mm
  • Basic dynamic load rating: 5.47 kN
  • Basic static load rating: 5.47 kN
IKO PHSA6 rod ends | d:6,d2:19.5,l4:39.7mm IKO

IKO PHSA6 rod ends | d:6,d2:19.5,l4:39.7mm

IKO PHSA6 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:6mm, d2:19.5mm, l4:39.7mm.

Inquire Now

  • Brand: IKO
  • d: 6 mm
  • d2: 19.5 mm
  • Height: 39.7 mm
  • Basic dynamic load rating: 6.76 kN
  • Basic static load rating: 6.76 kN
IKO PHS30 rod ends | d:30,d2:70,l4:145mm IKO

IKO PHS30 rod ends | d:30,d2:70,l4:145mm

IKO PHS30 rod ends, Lubrication type PILLOBALL rod ends insert type/with Female Thread, Dimensions: d:30mm, d2:70mm, l4:145mm.

Inquire Now

  • Brand: IKO
  • d: 30 mm
  • d2: 70 mm
  • Height: 145 mm
  • Basic dynamic load rating: 62.3 kN
  • Basic static load rating: 62.3 kN
IKO PHSA8 rod ends | d:8,d2:24,l4:48mm IKO

IKO PHSA8 rod ends | d:8,d2:24,l4:48mm

IKO PHSA8 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:8mm, d2:24mm, l4:48mm.

Inquire Now

  • Brand: IKO
  • d: 8 mm
  • d2: 24 mm
  • Height: 48 mm
  • Basic dynamic load rating: 10.2 kN
  • Basic static load rating: 10.2 kN
IKO PHSA10 rod ends | d:10,d2:28,l4:57mm IKO

IKO PHSA10 rod ends | d:10,d2:28,l4:57mm

IKO PHSA10 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:10mm, d2:28mm, l4:57mm.

Inquire Now

  • Brand: IKO
  • d: 10 mm
  • d2: 28 mm
  • Height: 57 mm
  • Basic dynamic load rating: 13.1 kN
  • Basic static load rating: 13.1 kN
IKO PHSA12 rod ends | d:12,d2:32,l4:66mm IKO

IKO PHSA12 rod ends | d:12,d2:32,l4:66mm

IKO PHSA12 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:12mm, d2:32mm, l4:66mm.

Inquire Now

  • Brand: IKO
  • d: 12 mm
  • d2: 32 mm
  • Height: 66 mm
  • Basic dynamic load rating: 16.4 kN
  • Basic static load rating: 16.4 kN
IKO PHSA14 rod ends | d:14,d2:36,l4:75mm IKO

IKO PHSA14 rod ends | d:14,d2:36,l4:75mm

IKO PHSA14 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:14mm, d2:36mm, l4:75mm.

Inquire Now

  • Brand: IKO
  • d: 14 mm
  • d2: 36 mm
  • Height: 75 mm
  • Basic dynamic load rating: 20 kN
  • Basic static load rating: 20 kN
IKO PHSA18 rod ends | d:18,d2:45,l4:93.5mm IKO

IKO PHSA18 rod ends | d:18,d2:45,l4:93.5mm

IKO PHSA18 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:18mm, d2:45mm, l4:93.5mm.

Inquire Now

  • Brand: IKO
  • d: 18 mm
  • d2: 45 mm
  • Height: 93.5 mm
  • Basic dynamic load rating: 28.8 kN
  • Basic static load rating: 28.8 kN
IKO PHSA20 rod ends | d:20,d2:49,l4:101.5mm IKO

IKO PHSA20 rod ends | d:20,d2:49,l4:101.5mm

IKO PHSA20 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:20mm, d2:49mm, l4:101.5mm.

Inquire Now

  • Brand: IKO
  • d: 20 mm
  • d2: 49 mm
  • Height: 101.5 mm
  • Basic dynamic load rating: 33.4 kN
  • Basic static load rating: 33.4 kN
IKO PHSA22 rod ends | d:22,d2:54,l4:111mm IKO

IKO PHSA22 rod ends | d:22,d2:54,l4:111mm

IKO PHSA22 rod ends, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread, Dimensions: d:22mm, d2:54mm, l4:111mm.

Inquire Now

  • Brand: IKO
  • d: 22 mm
  • d2: 54 mm
  • Height: 111 mm
  • Basic dynamic load rating: 40.4 kN
  • Basic static load rating: 40.4 kN

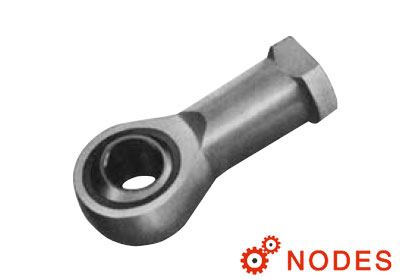

IKO PHSB2 rod ends | d:3.175,D:11.91,L:26.57mm IKO

IKO PHSB2 rod ends | d:3.175,D:11.91,L:26.57mm

IKO PHSB2 rod ends, Inch series PILLOBALL rod ends Insert type/With Female Thread, Dimensions: d:3.175mm, D:11.91mm, L:26.57mm.

Inquire Now

  • Brand: IKO
  • d: 3.175 mm
  • d2: 11.91 mm
  • Height: 26.57 mm
  • Basic dynamic load rating: 1.85 kN
  • Basic static load rating: 1.85 kN
IKO PHSB6 rod ends | d:9.525,D:25.4,L:53.98mm IKO

IKO PHSB6 rod ends | d:9.525,D:25.4,L:53.98mm

IKO PHSB6 rod ends, Inch series PILLOBALL rod ends Insert type/With Female Thread, Dimensions: d:9.525mm, D:25.4mm, L:53.98mm.

Inquire Now

  • Brand: IKO
  • d: 9.525 mm
  • d2: 25.4 mm
  • Height: 53.98 mm
  • Basic dynamic load rating: 9.23 kN
  • Basic static load rating: 9.23 kN
IKO PHSB7 rod ends | d:11.112,D:28.58,L:60.33mm IKO

IKO PHSB7 rod ends | d:11.112,D:28.58,L:60.33mm

IKO PHSB7 rod ends, Inch series PILLOBALL rod ends Insert type/With Female Thread, Dimensions: d:11.112mm, D:28.58mm, L:60.33mm.

Inquire Now

  • Brand: IKO
  • d: 11.112 mm
  • d2: 28.58 mm
  • Height: 60.33 mm
  • Basic dynamic load rating: 11.2 kN
  • Basic static load rating: 11.2 kN
IKO PHSB8 rod ends | d:12.7,D:33.32,L:70.64mm IKO

IKO PHSB8 rod ends | d:12.7,D:33.32,L:70.64mm

IKO PHSB8 rod ends, Inch series PILLOBALL rod ends Insert type/With Female Thread, Dimensions: d:12.7mm, D:33.32mm, L:70.64mm.

Inquire Now

  • Brand: IKO
  • d: 12.7 mm
  • d2: 33.32 mm
  • Height: 70.64 mm
  • Basic dynamic load rating: 14.8 kN
  • Basic static load rating: 14.8 kN
IKO PHSB12 rod ends | d:19.05,D:44.45,L:95.25mm IKO

IKO PHSB12 rod ends | d:19.05,D:44.45,L:95.25mm

IKO PHSB12 rod ends, Inch series PILLOBALL rod ends Insert type/With Female Thread, Dimensions: d:19.05mm, D:44.45mm, L:95.25mm.

Inquire Now

  • Brand: IKO
  • d: 19.05 mm
  • d2: 44.45 mm
  • Height: 95.25 mm
  • Basic dynamic load rating: 28.5 kN
  • Basic static load rating: 28.5 kN
IKO PHSB16 rod ends | d:25.4,D:69.85,L:139.7mm IKO

IKO PHSB16 rod ends | d:25.4,D:69.85,L:139.7mm

IKO PHSB16 rod ends, Inch series PILLOBALL rod ends Insert type/With Female Thread, Dimensions: d:25.4mm, D:69.85mm, L:139.7mm.

Inquire Now

  • Brand: IKO
  • d: 25.4 mm
  • d2: 69.85 mm
  • Height: 139.7 mm
  • Basic dynamic load rating: 59.3 kN
  • Basic static load rating: 59.3 kN

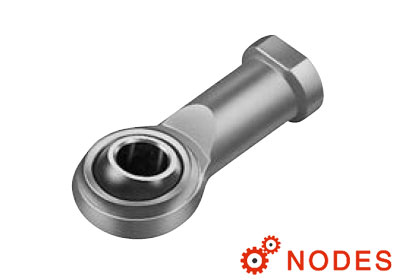

IKO PHS3EC rod ends | d:3,d2:12,l4:27mm IKO

IKO PHS3EC rod ends | d:3,d2:12,l4:27mm

IKO PHS3EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:3mm, d2:12mm, l4:27mm.

Inquire Now

  • Brand: IKO
  • d: 3 mm
  • d2: 12 mm
  • Height: 27 mm
  • Basic dynamic load rating: 3.5 kN
  • Basic static load rating: 3.5 kN
IKO PHS4EC rod ends | d:4,d2:14,l4:31mm IKO

IKO PHS4EC rod ends | d:4,d2:14,l4:31mm

IKO PHS4EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:4mm, d2:14mm, l4:31mm.

Inquire Now

  • Brand: IKO
  • d: 4 mm
  • d2: 14 mm
  • Height: 31 mm
  • Basic dynamic load rating: 4.95 kN
  • Basic static load rating: 4.95 kN
IKO PHS5EC rod ends | d:5,d2:16,l4:35mm IKO

IKO PHS5EC rod ends | d:5,d2:16,l4:35mm

IKO PHS5EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:5mm, d2:16mm, l4:35mm.

Inquire Now

  • Brand: IKO
  • d: 5 mm
  • d2: 16 mm
  • Height: 35 mm
  • Basic dynamic load rating: 6.54 kN
  • Basic static load rating: 6.54 kN
IKO PHS6EC rod ends | d:6,d2:18,l4:39mm IKO

IKO PHS6EC rod ends | d:6,d2:18,l4:39mm

IKO PHS6EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:6mm, d2:18mm, l4:39mm.

Inquire Now

  • Brand: IKO
  • d: 6 mm
  • d2: 18 mm
  • Height: 39 mm
  • Basic dynamic load rating: 8.41 kN
  • Basic static load rating: 8.41 kN
IKO PHS8EC rod ends | d:8,d2:22,l4:47mm IKO

IKO PHS8EC rod ends | d:8,d2:22,l4:47mm

IKO PHS8EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:8mm, d2:22mm, l4:47mm.

Inquire Now

  • Brand: IKO
  • d: 8 mm
  • d2: 22 mm
  • Height: 47 mm
  • Basic dynamic load rating: 14 kN
  • Basic static load rating: 14 kN
IKO POS8 rod ends | d:8,d2:22,l2:53mm IKO

IKO POS8 rod ends | d:8,d2:22,l2:53mm

IKO POS8 rod ends, Lubrication type PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:8mm, d2:22mm, l2:53mm.

Inquire Now

  • Brand: IKO
  • d: 8 mm
  • d2: 22 mm
  • Height: 53 mm
  • Basic dynamic load rating: 7.01 kN
  • Basic static load rating: 7.01 kN
IKO PHS10EC rod ends | d:10,d2:26,l4:56mm IKO

IKO PHS10EC rod ends | d:10,d2:26,l4:56mm

IKO PHS10EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:10mm, d2:26mm, l4:56mm.

Inquire Now

  • Brand: IKO
  • d: 10 mm
  • d2: 26 mm
  • Height: 56 mm
  • Basic dynamic load rating: 19.6 kN
  • Basic static load rating: 19.6 kN
IKO PHS14EC rod ends | d:14,d2:34,l4:74mm IKO

IKO PHS14EC rod ends | d:14,d2:34,l4:74mm

IKO PHS14EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:14mm, d2:34mm, l4:74mm.

Inquire Now

  • Brand: IKO
  • d: 14 mm
  • d2: 34 mm
  • Height: 74 mm
  • Basic dynamic load rating: 33.6 kN
  • Basic static load rating: 33.6 kN
IKO PHS16EC rod ends | d:16,d2:38,l4:83mm IKO

IKO PHS16EC rod ends | d:16,d2:38,l4:83mm

IKO PHS16EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:16mm, d2:38mm, l4:83mm.

Inquire Now

  • Brand: IKO
  • d: 16 mm
  • d2: 38 mm
  • Height: 83 mm
  • Basic dynamic load rating: 42 kN
  • Basic static load rating: 42 kN
IKO PHS18EC rod ends | d:18,d2:42,l4:92mm IKO

IKO PHS18EC rod ends | d:18,d2:42,l4:92mm

IKO PHS18EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:18mm, d2:42mm, l4:92mm.

Inquire Now

  • Brand: IKO
  • d: 18 mm
  • d2: 42 mm
  • Height: 92 mm
  • Basic dynamic load rating: 51.4 kN
  • Basic static load rating: 51.4 kN
IKO PHS20EC rod ends | d:20,d2:46,l4:100mm IKO

IKO PHS20EC rod ends | d:20,d2:46,l4:100mm

IKO PHS20EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:20mm, d2:46mm, l4:100mm.

Inquire Now

  • Brand: IKO
  • d: 20 mm
  • d2: 46 mm
  • Height: 100 mm
  • Basic dynamic load rating: 61.6 kN
  • Basic static load rating: 61.6 kN

IKO rod ends bearing catalogue
