IKO PHSA10 rod end bearing

IKO PHSA10 rod ends | d:10,d2:28,l4:57mm

Also known as : PHSA10

  • d: 10 mm
  • d2: 28 mm
  • Height: 57 mm
  • Basic dynamic load rating: 13.1 kN
  • Basic static load rating: 0 kN

Inquire Now

IKO PHSA10 Bearing

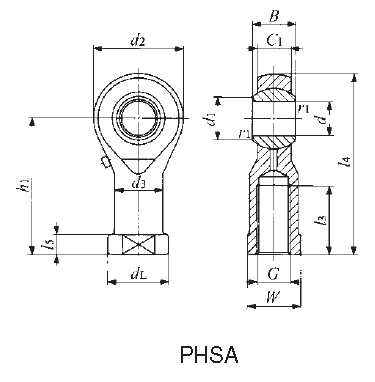

IKO PHSA10 Bearing details

Identification number PHSA10
Type Lubrication type PILLOBALL Rod ends
Mass 70 g
d 10 mm
Thread G M10X1.5
d2 28 mm
C1 10.5 mm
B 14 mm
d1 12.9 mm
l4 57 mm
h1 43 mm
l3 23 mm
l5 6.5 mm
W 17 mm
d3 15 mm
dL 19 mm
r1s min 0.2 mm
Ball dia. 19.05 mm
Dynamic load capacity 13.1 kN

IKO PHSA10 rod ends is available from stock, Lubrication type PILLOBALL rod ends Die-cast Type/With Female Thread.
