IKO GE30EC-2RS Bearing

IKO GE30EC-2RS spherical plain bearings | 30x47x22mm

Also known as : GE30EC-2RS

  • Inside Diameter: 30 mm
  • Outside Diameter: 47 mm
  • Width: 22 mm
  • Basic dynamic load rating: 71.8 kN
  • Basic static load rating: 180 kN

Inquire Now

IKO GE30EC-2RS Bearing

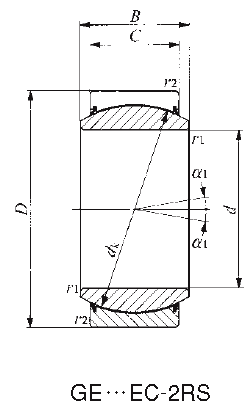

IKO GE30EC-2RS Bearing details

Identification number GE30EC-2RS
Type Spherical plain bearings
Mass 0.16 kg
d 30 mm
D 47 mm
B 22
C 18 mm
dk 40.7 mm
r1s min 0.6 mm
r2s min 0.6 mm
Permissible tilting angle degree a1 4
Dynamic load capacity 71.8 kN
Static load capacity 180 kN

Nodes bearings have IKO GE30EC-2RS spherical bushings, Maintenance-free Spherical Bushings, in stock.
