SKF GEH30ES-2RS Bearing

SKF GEH30ES-2RS spherical plain bearings | 30x55x32mm

Also known as : GEH30ES-2RS, GE30-FO-2RS

  • Inside Diameter: 30 mm
  • Outside Diameter: 55 mm
  • Width: 32 mm
  • Basic dynamic load rating: 80 kN
  • Basic static load rating: 400 kN

Inquire Now

SKF GEH30ES-2RS Bearing

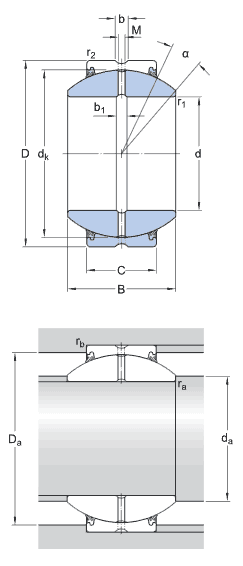

SKF GEH30ES-2RS Bearing details

number GEH30ES-2RS
Type Radial spherical plain bearings
d 30 mm
D 55 mm
B 32 mm
C 20 mm
α 17 °
dk 47 mm
b 3.9 mm
b1 3.9 mm
M 2.5 mm
r1 min. 0.6 mm
r2 min. 1 mm
da min. 33.7 mm
da max. 34.4 mm
Da min. 48.5 mm
Da max. 50.9 mm
ra max. 0.6 mm
rb max. 1 mm
Calculation data
Basic dynamic load rating C 80 kN
Basic static load rating C0 400 kN
Specific dynamic load factor K 100 N/mm²
Specific static load factor K0 500 N/mm²
Material constant KM 330
Mass 0.35 kg

As SKF bearing distributor, Nodes bearings have SKF GEH30ES-2RS spherical plain bearings in stock.

A characteristic feature of SKF steel/steel radial spherical plain bearings is the outer ring, which is intentionally fractured so that it can be sprung apart to enable the inner ring to be inserted

related articles

SKF GEH30ES-2RS bearing cross reference

IKO GE30EC bearing
30mm x 47mm x 22mm
IKO GE30EC-2RS bearing
30mm x 47mm x 22mm
IKO GE30ES bearing
30mm x 47mm x 22mm
IKO GE30ES-2RS bearing
30mm x 47mm x 22mm
IKO GE30GS bearing
30mm x 55mm x 32mm
IKO GE30GS-2RS bearing
30mm x 55mm x 32mm

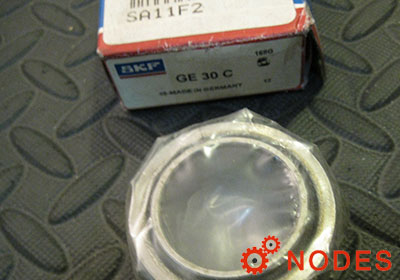

SKF GE30C bearing
30mm x 47mm x 22mm

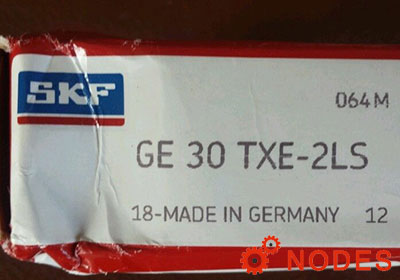

SKF GE30TXE-2LS bearing
