INA GE120-XL-KRR-B Bearing

INA GE120-XL-KRR-B bearing | 120x215x81 mm

Also known as : GE120-XL-KRR-B

  • Inside Diameter: 120 mm
  • Outside Diameter: 215 mm
  • Width: 81 mm
  • Basic dynamic load rating: 165 kN
  • Basic static load rating: 131 kN

Inquire Now


INA GE120-XL-KRR-B Bearing

INA GE120-XL-KRR-B Bearing details

Number GE120-XL-KRR-B
Type Radial insert ball bearings
spherical outer ring, location by eccentric locking collar, R seals on both sides

d 120mm
DSP 215mm
B1 81mm
B 63,5mm
C 40mm
C2 45mm
Ca 12,8mm
D1 186,5mm
d1 146,4mm
d3 max 152mm
S 28,5mm
W 6mm
m 7,49kg Mass
Cr 165000N Basic dynamic load rating, radial
C0r 131000N Basic static load rating, radial
    Lubrication groove in outer ring
Cur 5100N Fatigue limit load, radial
f0 14,8 Calculation factor

As INA bearing distributor, Nodes bearings have INA GE120-XL-KRR-B Insert ball bearings in stock. GE120-XL-KRR-B, spherical outer ring, location by eccentric locking collar, R seals on both sides.

INA GE120-XL-KRR-B bearing cross reference

IKO GE120ES bearing
120mm x 180mm x 85mm
IKO GE120ES-2RS bearing
120mm x 180mm x 85mm
IKO GE120GS bearing
120mm x 210mm x 115mm
IKO GE120GS-2RS bearing
120mm x 210mm x 115mm

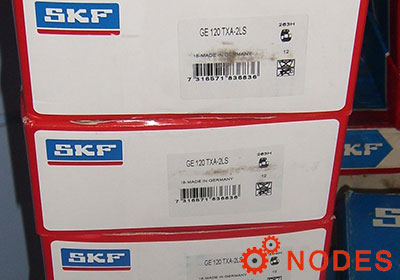

SKF GE120TXA-2LS bearing
120mm x 180mm x 85mm
INA GE120-DO bearing
120mm x 180mm x 85mm
INA GE120-DO-2RS bearing
120mm x 180mm x 85mm
INA GE120-FO-2RS bearing
120mm x 210mm x 115mm
INA GE120-UK-2RS bearing
120mm x 180mm x 85mm
INA GE120-FW-2RS bearing
120mm x 210mm x 115mm
INA GE120-SX bearing
120mm x 180mm x 38mm
INA GE120-SW bearing
120mm x 180mm x 38mm
