INA thin section ball bearings

INA thin section ball bearings

As a INA bearing distributor, Nodes bearings have INA thin section ball bearings in stock. They are,
INA deep groove ball bearings: CSCAA, CSCA, CSCB, CSCC, CSCU, CSCD, CSCF, CSCG series
INA four point contact ball bearings: CSXAA, CSXA, CSXB, CSXC, CSXU, CSXD, CSXF, CSXG series
INA Angular contact ball bearings: CSEAA, CSEA, CSEB, CSEC, CSED, CSEF, CSEG series.

Displaying 257 INA thin section bearings.
INA

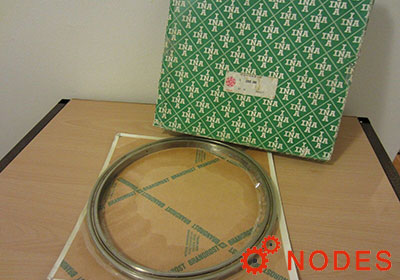

INA CSCD090 bearings

Nodes bearings have INA CSCD090 bearings in stock, thin section ball bearings, inch sizes, CSCD090 bearings dimensions: 228.6mm x 254mm x 12.7mm, Cr: 16400N, C0r: 26000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 228.6 mm
  • Outside Diameter: 254 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 16.4 kN
  • Basic static load rating: 16.4 kN
INA

INA CSEA070 bearings

Nodes bearings have INA CSEA070 bearings in stock, thin section ball bearings, inch sizes, CSEA070 bearings dimensions: 177.8mm x 190.5mm x 6.35mm, Interchangeable: KA070AR0.

Inquire Now

  • Brand: INA
  • Inside Diameter: 177.8 mm
  • Outside Diameter: 190.5 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 5.1 kN
  • Basic static load rating: 5.1 kN
INA

INA CSXD090 bearings

Nodes bearings have INA CSXD090 bearings in stock, thin section ball bearings, inch sizes, CSXD090 bearings dimensions: 228.6mm x 254mm x 12.7mm, Interchangeable: KD090XP0.

Inquire Now

  • Brand: INA
  • Inside Diameter: 228.6 mm
  • Outside Diameter: 254 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 21.8 kN
  • Basic static load rating: 21.8 kN
INA

INA CSXG200 bearings

Nodes bearings have INA CSXG200 bearings in stock, thin section ball bearings, inch sizes, CSXG200 bearings dimensions: 508mm x 558.8mm x 25.4mm, Interchangeable: KG200XP0.

Inquire Now

  • Brand: INA
  • Inside Diameter: 508 mm
  • Outside Diameter: 558.8 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 88 kN
  • Basic static load rating: 88 kN
INA

INA CSCF090 bearings

Nodes bearings have INA CSCF090 bearings in stock, thin section ball bearings, inch sizes, CSCF090 bearings dimensions: 228.6mm x 266.7mm x 19.05mm, Cr: 31500N, C0r: 43500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 228.6 mm
  • Outside Diameter: 266.7 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 31.5 kN
  • Basic static load rating: 31.5 kN
INA

INA CSCF100 bearings

Nodes bearings have INA CSCF100 bearings in stock, thin section ball bearings, inch sizes, CSCF100 bearings dimensions: 254mm x 292.1mm x 19.05mm, Cr: 32500N, C0r: 48000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 254 mm
  • Outside Diameter: 292.1 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 32.5 kN
  • Basic static load rating: 32.5 kN
INA

INA CSCF110 bearings

Nodes bearings have INA CSCF110 bearings in stock, thin section ball bearings, inch sizes, CSCF110 bearings dimensions: 279.4mm x 317.5mm x 19.05mm, Cr: 33500N, C0r: 53000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 279.4 mm
  • Outside Diameter: 317.5 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 33.5 kN
  • Basic static load rating: 33.5 kN
INA

INA CSCF120 bearings

Nodes bearings have INA CSCF120 bearings in stock, thin section ball bearings, inch sizes, CSCF120 bearings dimensions: 304.8mm x 342.9mm x 19.05mm, Cr: 32500N, C0r: 58000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 304.8 mm
  • Outside Diameter: 342.9 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 32.5 kN
  • Basic static load rating: 32.5 kN
INA

INA CSCF140 bearings

Nodes bearings have INA CSCF140 bearings in stock, thin section ball bearings, inch sizes, CSCF140 bearings dimensions: 355.6mm x 393.7mm x 19.05mm, Cr: 34500N, C0r: 67000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 355.6 mm
  • Outside Diameter: 393.7 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 34.5 kN
  • Basic static load rating: 34.5 kN
INA

INA CSCF160 bearings

Nodes bearings have INA CSCF160 bearings in stock, thin section ball bearings, inch sizes, CSCF160 bearings dimensions: 406.4mm x 444.5mm x 19.05mm, Cr: 36000N, C0r: 76000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 406.4 mm
  • Outside Diameter: 444.5 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 36 kN
  • Basic static load rating: 36 kN
INA

INA CSCG055 bearings

Nodes bearings have INA CSCG055 bearings in stock, thin section ball bearings, inch sizes, CSCG055 bearings dimensions: 139.7mm x 190.5mm x 25.4mm, Cr: 41500N, C0r: 39000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 139.7 mm
  • Outside Diameter: 190.5 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 41.5 kN
  • Basic static load rating: 41.5 kN
INA

INA CSCG065 bearings

Nodes bearings have INA CSCG065 bearings in stock, thin section ball bearings, inch sizes, CSCG065 bearings dimensions: 165.1mm x 215.9mm x 25.4mm, Cr: 44000N, C0r: 46000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 165.1 mm
  • Outside Diameter: 215.9 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 44 kN
  • Basic static load rating: 44 kN
INA

INA CSCG070 bearings

Nodes bearings have INA CSCG070 bearings in stock, thin section ball bearings, inch sizes, CSCG070 bearings dimensions: 177.8mm x 228.6mm x 25.4mm, Cr: 46000N, C0r: 50000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 177.8 mm
  • Outside Diameter: 228.6 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 46 kN
  • Basic static load rating: 46 kN
INA

INA CSCG075 bearings

Nodes bearings have INA CSCG075 bearings in stock, thin section ball bearings, inch sizes, CSCG075 bearings dimensions: 190.5mm x 241.3mm x 25.4mm, Cr: 46500N, C0r: 53000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 190.5 mm
  • Outside Diameter: 241.3 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 46.5 kN
  • Basic static load rating: 46.5 kN
INA

INA CSCG080 bearings

Nodes bearings have INA CSCG080 bearings in stock, thin section ball bearings, inch sizes, CSCG080 bearings dimensions: 203.2mm x 254mm x 25.4mm, Cr: 48000N, C0r: 57000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 203.2 mm
  • Outside Diameter: 254 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 48 kN
  • Basic static load rating: 48 kN
INA

INA CSCG090 bearings

Nodes bearings have INA CSCG090 bearings in stock, thin section ball bearings, inch sizes, CSCG090 bearings dimensions: 228.6mm x 279.4mm x 25.4mm, Cr: 50000N, C0r: 64000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 228.6 mm
  • Outside Diameter: 279.4 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 50 kN
  • Basic static load rating: 50 kN
INA

INA CSCG100 bearings

Nodes bearings have INA CSCG100 bearings in stock, thin section ball bearings, inch sizes, CSCG100 bearings dimensions: 254mm x 304.8mm x 25.4mm, Cr: 52000N, C0r: 71000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 254 mm
  • Outside Diameter: 304.8 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 52 kN
  • Basic static load rating: 52 kN
INA

INA CSXA020 bearings

Nodes bearings have INA CSXA020 bearings in stock, thin section ball bearings, inch sizes, CSXA020 bearings dimensions: 50.8mm x 63.5mm x 6.35mm, Cr: 4400N, C0r: 4600N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 50.8 mm
  • Outside Diameter: 63.5 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 4.4 kN
  • Basic static load rating: 4.4 kN
INA

INA CSXA025 bearings

Nodes bearings have INA CSXA025 bearings in stock, thin section ball bearings, inch sizes, CSXA025 bearings dimensions: 63.5mm x 76.2mm x 6.35mm, Cr: 4750N, C0r: 5700N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 63.5 mm
  • Outside Diameter: 76.2 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 4.75 kN
  • Basic static load rating: 4.75 kN
INA

INA CSXA030 bearings

Nodes bearings have INA CSXA030 bearings in stock, thin section ball bearings, inch sizes, CSXA030 bearings dimensions: 76.2mm x 88.9mm x 6.35mm, Cr: 5100N, C0r: 6800N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 76.2 mm
  • Outside Diameter: 88.9 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 5.1 kN
  • Basic static load rating: 5.1 kN
INA

INA CSXA035 bearings

Nodes bearings have INA CSXA035 bearings in stock, thin section ball bearings, inch sizes, CSXA035 bearings dimensions: 88.9mm x 101.6mm x 6.35mm, Cr: 5300N, C0r: 7900N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 88.9 mm
  • Outside Diameter: 101.6 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 5.3 kN
  • Basic static load rating: 5.3 kN
INA

INA CSXA040 bearings

Nodes bearings have INA CSXA040 bearings in stock, thin section ball bearings, inch sizes, CSXA040 bearings dimensions: 101.6mm x 114.3mm x 6.35mm, Cr: 5600N, C0r: 9000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 101.6 mm
  • Outside Diameter: 114.3 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 5.6 kN
  • Basic static load rating: 5.6 kN
INA

INA CSXA045 bearings

Nodes bearings have INA CSXA045 bearings in stock, thin section ball bearings, inch sizes, CSXA045 bearings dimensions: 114.3mm x 127mm x 6.35mm, Cr: 5800N, C0r: 10100N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 114.3 mm
  • Outside Diameter: 127 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 5.8 kN
  • Basic static load rating: 5.8 kN
INA

INA CSXA047 bearings

Nodes bearings have INA CSXA047 bearings in stock, thin section ball bearings, inch sizes, CSXA047 bearings dimensions: 120.65mm x 133.35mm x 6.35mm, Cr: 6000N, C0r: 10600N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 120.65 mm
  • Outside Diameter: 133.35 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 6 kN
  • Basic static load rating: 6 kN
INA

INA CSXA050 bearings

Nodes bearings have INA CSXA050 bearings in stock, thin section ball bearings, inch sizes, CSXA050 bearings dimensions: 127mm x 139.7mm x 6.35mm, Cr: 6100N, C0r: 11200N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 127 mm
  • Outside Diameter: 139.7 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 6.1 kN
  • Basic static load rating: 6.1 kN
INA

INA CSXA055 bearings

Nodes bearings have INA CSXA055 bearings in stock, thin section ball bearings, inch sizes, CSXA055 bearings dimensions: 139.7mm x 152.4mm x 6.35mm, Cr: 6300N, C0r: 12300N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 139.7 mm
  • Outside Diameter: 152.4 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 6.3 kN
  • Basic static load rating: 6.3 kN
INA

INA CSXA060 bearings

Nodes bearings have INA CSXA060 bearings in stock, thin section ball bearings, inch sizes, CSXA060 bearings dimensions: 152.4mm x 165.1mm x 6.35mm, Cr: 6500N, C0r: 13400N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 152.4 mm
  • Outside Diameter: 165.1 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 6.5 kN
  • Basic static load rating: 6.5 kN
INA

INA CSXA065 bearings

Nodes bearings have INA CSXA065 bearings in stock, thin section ball bearings, inch sizes, CSXA065 bearings dimensions: 165.1mm x 177.8mm x 6.35mm, Cr: 6600N, C0r: 14500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 165.1 mm
  • Outside Diameter: 177.8 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 6.6 kN
  • Basic static load rating: 6.6 kN
INA

INA CSXA070 bearings

Nodes bearings have INA CSXA070 bearings in stock, thin section ball bearings, inch sizes, CSXA070 bearings dimensions: 177.8mm x 190.5mm x 6.35mm, Cr: 6800N, C0r: 15600N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 177.8 mm
  • Outside Diameter: 190.5 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 6.8 kN
  • Basic static load rating: 6.8 kN
INA

INA CSXA075 bearings

Nodes bearings have INA CSXA075 bearings in stock, thin section ball bearings, inch sizes, CSXA075 bearings dimensions: 190.5mm x 203.2mm x 6.35mm, Cr: 7000N, C0r: 16700N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 190.5 mm
  • Outside Diameter: 203.2 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 7 kN
  • Basic static load rating: 7 kN
INA

INA CSXB020 bearings

Nodes bearings have INA CSXB020 bearings in stock, thin section ball bearings, inch sizes, CSXB020 bearings dimensions: 50.8mm x 66.675mm x 7.938mm, Cr: 6300N, C0r: 6200N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 50.8 mm
  • Outside Diameter: 66.675 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 6.3 kN
  • Basic static load rating: 6.3 kN
INA

INA CSXB025 bearings

Nodes bearings have INA CSXB025 bearings in stock, thin section ball bearings, inch sizes, CSXB025 bearings dimensions: 63.5mm x 79.375mm x 7.938mm, Cr: 6800N, C0r: 7700N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 63.5 mm
  • Outside Diameter: 79.375 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 6.8 kN
  • Basic static load rating: 6.8 kN
INA

INA CSXB030 bearings

Nodes bearings have INA CSXB030 bearings in stock, thin section ball bearings, inch sizes, CSXB030 bearings dimensions: 76.2mm x 92.075mm x 7.938mm, Cr: 7300N, C0r: 9100N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 76.2 mm
  • Outside Diameter: 92.075 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 7.3 kN
  • Basic static load rating: 7.3 kN
INA

INA CSXB035 bearings

Nodes bearings have INA CSXB035 bearings in stock, thin section ball bearings, inch sizes, CSXB035 bearings dimensions: 88.9mm x 104.775mm x 7.938mm, Cr: 7700N, C0r: 10600N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 88.9 mm
  • Outside Diameter: 104.775 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 7.7 kN
  • Basic static load rating: 7.7 kN
INA

INA CSXB040 bearings

Nodes bearings have INA CSXB040 bearings in stock, thin section ball bearings, inch sizes, CSXB040 bearings dimensions: 101.6mm x 117.475mm x 7.938mm, Cr: 8100N, C0r: 12100N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 101.6 mm
  • Outside Diameter: 117.475 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 8.1 kN
  • Basic static load rating: 8.1 kN
INA

INA CSXB042 bearings

Nodes bearings have INA CSXB042 bearings in stock, thin section ball bearings, inch sizes, CSXB042 bearings dimensions: 107.95mm x 123.825mm x 7.938mm, Cr: 8200N, C0r: 12600N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 107.95 mm
  • Outside Diameter: 123.825 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 8.2 kN
  • Basic static load rating: 8.2 kN
INA

INA CSXB045 bearings

Nodes bearings have INA CSXB045 bearings in stock, thin section ball bearings, inch sizes, CSXB045 bearings dimensions: 114.3mm x 130.175mm x 7.938mm, Cr: 8400N, C0r: 13500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 114.3 mm
  • Outside Diameter: 130.175 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 8.4 kN
  • Basic static load rating: 8.4 kN
INA

INA CSXB055 bearings

Nodes bearings have INA CSXB055 bearings in stock, thin section ball bearings, inch sizes, CSXB055 bearings dimensions: 139.7mm x 155.575mm x 7.938mm, Cr: 9000N, C0r: 16400N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 139.7 mm
  • Outside Diameter: 155.575 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 9 kN
  • Basic static load rating: 9 kN
