INA GNE70-XL-KRR-B bearing | 70x150x75.5 mm
Also known as : GNE70-XL-KRR-B
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 75.5 mm
- Basic dynamic load rating: 111 kN
- Basic static load rating: 68 kN
INA GNE70-XL-KRR-B Bearing
INA GNE70-XL-KRR-B Bearing details

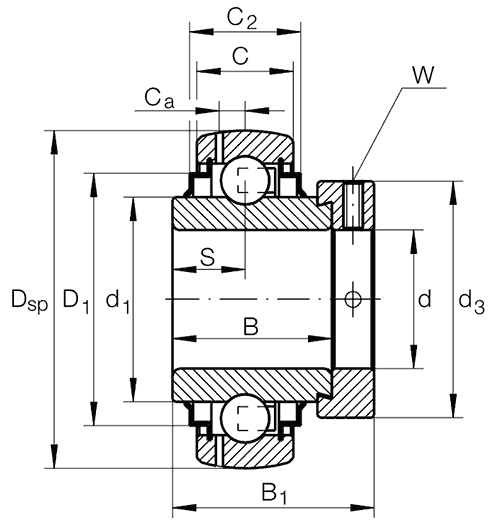

| Number | GNE70-XL-KRR-B | |
|---|---|---|
| Type |
Radial insert ball bearings spherical outer ring, location by eccentric locking collar, R seals on both sides |
|
| d | 70mm | |
| DSP | 150mm | |
| B1 | 75,5mm | |
| B | 58mm | |
| C | 37mm | |
| C2 | 41mm | |
| Ca | 12mm | |
| D1 | 127mm | |
| d1 | 92,2mm | |
| d3 max | 102mm | |
| S | 26mm | |
| W | 6mm | |
| m | 3,81kg | Mass |
| Cr | 111000N | Basic dynamic load rating, radial |
| C0r | 68000N | Basic static load rating, radial |
| Cur | 3300N | Fatigue limit load, radial |
| f0 | 13,2 | Calculation factor |
As INA bearing distributor, Nodes bearings have INA GNE70-XL-KRR-B Insert ball bearings in stock. GNE70-XL-KRR-B, spherical outer ring, location by eccentric locking collar, R seals on both sides.
INA GNE70-XL-KRR-B bearing cross reference
