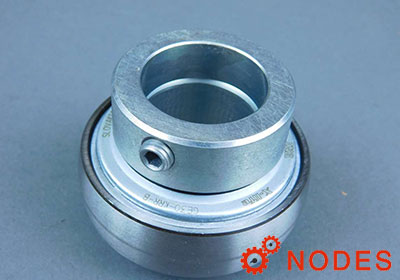

INA GRAE30-XL-NPP-B Bearing

INA GRAE30-XL-NPP-B bearing | 30x62x35.8 mm

Also known as : GRAE30-XL-NPP-B

  • Inside Diameter: 30 mm
  • Outside Diameter: 62 mm
  • Width: 35.8 mm
  • Basic dynamic load rating: 20.7 kN
  • Basic static load rating: 11.3 kN

Inquire Now

INA GRAE30-XL-NPP-B Bearing

INA GRAE30-XL-NPP-B Bearing details

Number GRAE30-XL-NPP-B
Type Radial insert ball bearings
spherical outer ring, location by eccentric locking collar, P seals on both sides

d 30mm
DSP 62mm
B1 35,8mm
B 23,8mm
C 18mm
Ca 4,7mm
d2 37,4mm
d3 max 44mm
S 9mm
W 4mm
m 0,32kg Mass
Cr 20700N Basic dynamic load rating, radial
C0r 11300N Basic static load rating, radial
Cur 570N Fatigue limit load, radial
f0 13,8 Calculation factor

As INA bearing distributor, Nodes bearings have INA GRAE30-XL-NPP-B Insert ball bearings in stock. GRAE30-XL-NPP-B, spherical outer ring, location by eccentric locking collar, P seals on both sides.
