INA GIL17-UK Rod ends | d:17,d2:46,l4:90mm
Also known as : GIL17-UK
- d: 17 mm
- d2: 46 mm
- Height: 90 mm
- Basic dynamic load rating: 22.5 kN
- Basic static load rating: 56.5 kN
INA GIL17-UK Bearing

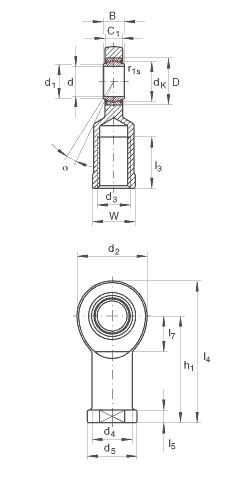

INA GIL17-UK Bearing details
| Number | GIL17-UK | |
|---|---|---|
| Type |
Rod ends with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread |
|
| d | 17 mm | Tolerance: 0/-0,008 |
| d2 | 46 mm | |
| l4 | 90 mm | |
| B | 14 mm | Tolerance: 0/-0,12 |
| C1 | 11 mm | |
| D | 30 mm | |
| d1 | 20,7 mm | |
| d3 | M16 | |
| d4 | 24 mm | |
| d5 | 30 mm | |
| dK | 25 mm | |
| h1 | 67 mm | |
| l3 | 34 mm | |
| l5 | 10 mm | |
| l7 | 23 mm | |
| r1s min | 0,3 mm | Chamfer dimension |
| W | 27 mm | |
| α | 10 ° | |
| m | 0,22 kg | Mass |
| Cr | 22500 N | Basic dynamic load rating, radial |
| C0r | 56500 N |
Basic static load rating, radial Basic load rating of housing |
As INA bearing distributor, Nodes bearings have INA GIL17-UK none in stock. GIL17-UK, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread.
