INA GIL25-DO Rod ends | d:25,d2:64,l4:126mm
Also known as : GIL25-DO
- d: 25 mm
- d2: 64 mm
- Height: 126 mm
- Basic dynamic load rating: 48.3 kN
- Basic static load rating: 88.3 kN
INA GIL25-DO Bearing
INA GIL25-DO Bearing details

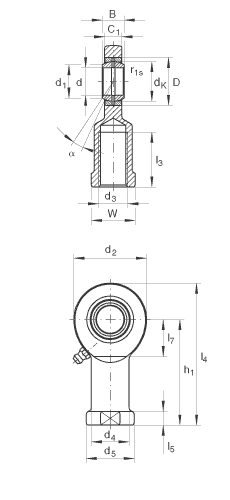

| Number | GIL25-DO | |
|---|---|---|
| Type |
Rod ends with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread |
|
| d | 25 mm | Tolerance: 0/-0,01 |
| d2 | 64 mm | |
| l4 | 126 mm | |
| B | 20 mm | Tolerance: 0/-0,12 |
| C1 | 17 mm | |
| D | 42 mm | |
| d1 | 29,3 mm | |
| d3 | M24x2 | |
| d4 | 33,5 mm | |
| d5 | 42 mm | |
| dK | 35,5 mm | |
| h1 | 94 mm | |
| l3 | 48 mm | |
| l5 | 12 mm | |
| l7 | 32 mm | |
| r1s min | 0,6 mm | Chamfer dimension |
| W | 36 mm | |
| α | 7 ° | |
| m | 0,64 kg | Mass |
| Cr | 48300 N | Basic dynamic load rating, radial |
| C0r | 88300 N |
Basic static load rating, radial Basic load rating of housing |
As INA bearing distributor, Nodes bearings have INA GIL25-DO none in stock. GIL25-DO, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread.
