INA SL024912 roller bearings
Also known as : SL024912, NNCL4912V
- Inside Diameter: 60 mm
- Outside Diameter: 85 mm
- Width: 25 mm
- Basic dynamic load rating: 70 kN
- Basic static load rating: 121 kN
INA SL024912 Bearing

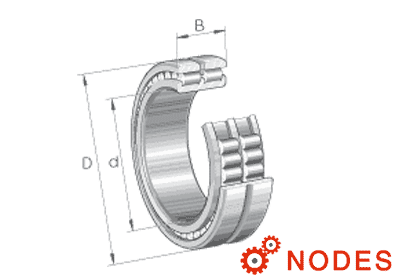

INA SL024912 Bearing details
| model | SL024912 |
|---|---|
| d | 60 mm |
| D | 85 mm |
| B | 85 mm |
| C | 12.5 mm |
| d1 | 70.3 mm |
| E | 77.51 mm |
| rmin | 1 mm |
| s | 1 mm, Axial displacement |
| Cr | 70000 N |
| C0r | 121000 N |
| Cur | 17300 N, Fatigue limit load, radial |
| Limiting speed | 2650 1/min |
| Reference speed | 4650 1/min |
| mass | 0.47 kg |
INA SL024912 roller bearings, Designation to DIN 5412: NNCL4912V, Cylindrical roller bearings, non-locating bearing, double row, full complement cylindrical roller set
INA SL024912 bearing cross reference
INA SL014912 bearing
60mm x 85mm x 25mm
INA SL045012-PP bearing
60mm x 95mm x 46mm
INA SL182212-XL bearing
60mm x 110mm x 28mm
INA SL182912-XL bearing
60mm x 85mm x 16mm
INA SL183012-XL bearing
60mm x 95mm x 26mm
INA SL185012-XL bearing
60mm x 95mm x 46mm
INA SL192312-XL bearing
60mm x 130mm x 46mm
INA RSL182312-A bearing
60x115.62x46mm
