INA XSU080218 bearing | 180x255 mm
Also known as : XSU080218
- Inside Diameter: 180 mm
- Outside Diameter: 255 mm
- Basic dynamic load rating: 75 kN
- Basic static load rating: 310 kN
INA XSU080218 Bearing

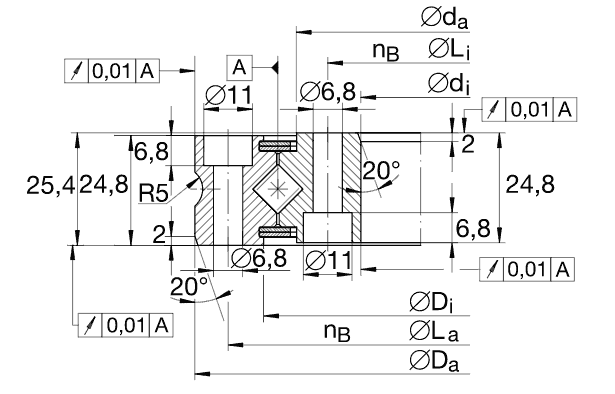

INA XSU080218 Bearing details
| Part Number | XSU080218 | |
|---|---|---|
| Type |
Crossed roller bearings standard series 08, without gear teeth, lamellar seals on both sides |
|
| di | 180mm | Tolerance: H6 |
| Da | 255mm | Tolerance: h6 |
| 20° | Chamfer angle | |
| Di | 224mm | |
| da | 209mm | |
| H | 25,4mm | |
| La | 240mm | |
| Li | 195mm | |
| na | 20 | Number of fixing holes in outer ring |
| ni | 20 | Number of fixing holes in inner ring |
| m | 4,3kg | Mass |
| Fr per | 13600N | Maximum permissible radial load against friction lock |
| Ca | 75000N | Basic dynamic load rating, axial |
| C0a | 310000N | Basic static load rating, axial |
| Cr | 53000N | Basic dynamic load rating, radial |
| C0r | 151000N | Basic static load rating, radial |
| A | 0,01mm | Running accuracies (in relation to raceway) |
As INA bearing distributor, Nodes bearings have INA XSU080218 crossed roller bearings in stock. XSU080218, Crossed roller bearings, standard series 08, without gear teeth, lamellar seals on both sides.
