INA XSU140844 bearing | 774x914 mm
Also known as : XSU140844
- Inside Diameter: 774 mm
- Outside Diameter: 914 mm
- Basic dynamic load rating: 300 kN
- Basic static load rating: 1090 kN
INA XSU140844 Bearing
INA XSU140844 Bearing details
| Part Number | XSU140844 | |
|---|---|---|
| Type |
Crossed roller bearings standard series 14, without gear teeth, lip seals on both sides |
|
| di | 774mm |

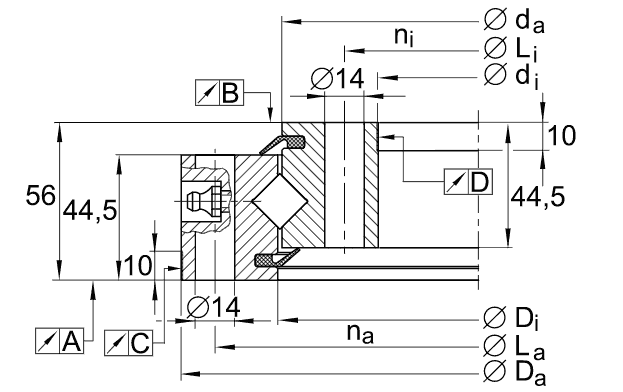

Centring lengths (see dimension drawing) Tolerance: +IT7 |
| Da | 914mm |
Centring lengths (see dimension drawing) Tolerance: -IT7 |
| Di | 845mm | Tolerance: +0,6/0 |
| da | 843mm | Tolerance: 0/-0,6 |
| H | 56mm | |
| La | 890mm | |
| Li | 798mm | |
| na | 40 | Number of fixing holes in outer ring |
| ni | 40 | Number of fixing holes in inner ring |
| m | 60kg | Mass |
| Fr per | 165200N | Maximum permissible radial load against friction lock |
| Ca | 300000N | Basic dynamic load rating, axial |
| C0a | 1090000N | Basic static load rating, axial |
| Cr | 212000N | Basic dynamic load rating, radial |
| C0r | 530000N | Basic static load rating, radial |
| VSPmin | 0,01 | Bearing clearance: preload |
| VSPmax | 0,04 | Bearing clearance: preload |
| A | 0,06mm | Running accuracies (in relation to raceway) |
| B | 0,06mm | Running accuracies (in relation to raceway) |
| C | 0,09mm | Running accuracies (in relation to raceway) |
| D | 0,08mm | Running accuracies (in relation to raceway) |
| 4 | Taper type lubrication nipples, DIN 71412-A M8x1, spaced uniformly on circumference and recessed |
As INA bearing distributor, Nodes bearings have INA XSU140844 crossed roller bearings in stock. XSU140844, Crossed roller bearings, standard series 08, without gear teeth, lamellar seals on both sides.
