INA XU050077 bearing | 40x112 mm
Also known as : XU050077
- Inside Diameter: 40 mm
- Outside Diameter: 112 mm
- Basic dynamic load rating: 19.8 kN
- Basic static load rating: 41 kN
INA XU050077 Bearing

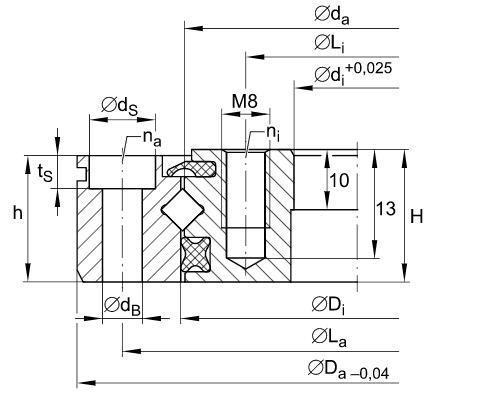

INA XU050077 Bearing details
| Part Number | XU050077 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, sealed on both sides |
|
| di | 40mm | |
| Da | 112mm | |
| Di | 77,5mm | |
| da | 74mm | |
| dB | 6,6mm | |
| dS | 11mm | |
| H | 22mm | |
| h | 21mm | |
| La | 97mm | |
| Li | 56mm | |
| na | 6 | Number of fixing holes in outer ring |
| ni | 6 | Number of fixing holes in inner ring |
| tS | 5,5mm | |
| m | 1,4kg | Mass |
| Fr per | 5800N | Maximum permissible radial load against friction lock |
| Ca | 19800N | Basic dynamic load rating, axial |
| C0a | 41000N | Basic static load rating, axial |
| Cr | 14100N | Basic dynamic load rating, radial |
| C0r | 20100N | Basic static load rating, radial |
| VSPmin | 0,005 | Bearing clearance: preload |
| VSPmax | 0,008 | Bearing clearance: preload |
| With lip seal and special seal |
As INA bearing distributor, Nodes bearings have INA XU050077 crossed roller bearings in stock. XU050077, Crossed roller bearings without gear teeth, sealed on both sides.
