INA XU080149 bearing | 101.6x196.85 mm
Also known as : XU080149
- Inside Diameter: 101.6 mm
- Outside Diameter: 196.85 mm
- Basic dynamic load rating: 55 kN
- Basic static load rating: 80 kN
INA XU080149 Bearing

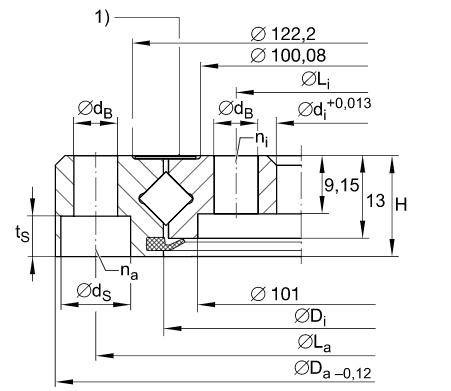

INA XU080149 Bearing details
| Part Number | XU080149 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, sealed on both sides |
|
| di | 101,6mm | |
| Da | 196,85mm | |
| 1) | Sealing ring | |
| Di | 149,6mm | |
| dB | 6,9mm | |
| dS | 11mm | |
| H | 22,22mm | |
| h | 22,22mm | |
| La | 177,8mm | |
| Li | 115,8mm | |
| na | 16 | Number of fixing holes in outer ring |
| ni | 16 | Number of fixing holes in inner ring |
| tS | 6,35mm | |
| m | 3,6kg | Mass |
| Fr per | 15400N | Maximum permissible radial load against friction lock |
| Ca | 55000N | Basic dynamic load rating, axial |
| C0a | 80000N | Basic static load rating, axial |
| Cr | 39500N | Basic dynamic load rating, radial |
| C0r | 39500N | Basic static load rating, radial |
| VSPmin | 0,005 | Bearing clearance: preload |
| VSPmax | 0,02 | Bearing clearance: preload |
| With lip seal and sealing washer |

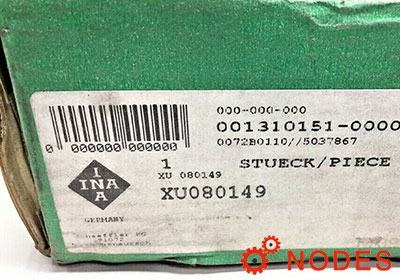

As INA bearing distributor, Nodes bearings have INA XU080149 crossed roller bearings in stock. XU080149, Crossed roller bearings without gear teeth, sealed on both sides.
