INA XU080264 bearing | 215.9x311 mm
Also known as : XU080264
- Inside Diameter: 215.9 mm
- Outside Diameter: 311 mm
- Basic dynamic load rating: 80 kN
- Basic static load rating: 156 kN
INA XU080264 Bearing

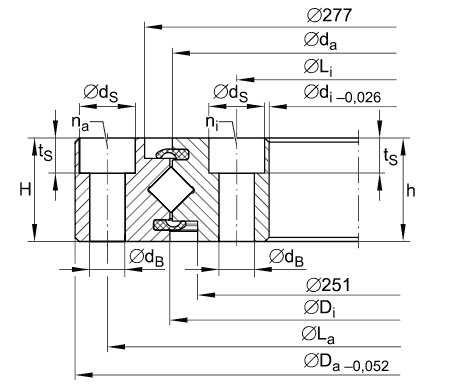

INA XU080264 Bearing details
| Part Number | XU080264 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, sealed on both sides |
|
| di | 215,9mm | |
| Da | 311mm | |
| Di | 264,6mm | |
| da | 263,4mm | |
| dB | 8,7mm | |
| dS | 13,7mm | |
| H | 25,4mm | |
| h | 25,4mm | |
| La | 295,3mm | |
| Li | 231,8mm | |
| na | 12 | Number of fixing holes in outer ring |
| ni | 12 | Number of fixing holes in inner ring |
| tS | 8,6mm | |
| m | 6,9kg | Mass |
| Fr per | 21000N | Maximum permissible radial load against friction lock |
| Ca | 80000N | Basic dynamic load rating, axial |
| C0a | 156000N | Basic static load rating, axial |
| Cr | 57000N | Basic dynamic load rating, radial |
| C0r | 76000N | Basic static load rating, radial |
| VSPmin | 0 | Bearing clearance: preload |
| VSPmax | 0,02 | Bearing clearance: preload |
| Without relubrication facility | ||
| Lip seals on both sides |
As INA bearing distributor, Nodes bearings have INA XU080264 crossed roller bearings in stock. XU080264, Crossed roller bearings without gear teeth, sealed on both sides.
