INA XU080430 bearing | 380x480 mm
Also known as : XU080430
- Inside Diameter: 380 mm
- Outside Diameter: 480 mm
- Basic dynamic load rating: 97 kN
- Basic static load rating: 355 kN
INA XU080430 Bearing
INA XU080430 Bearing details

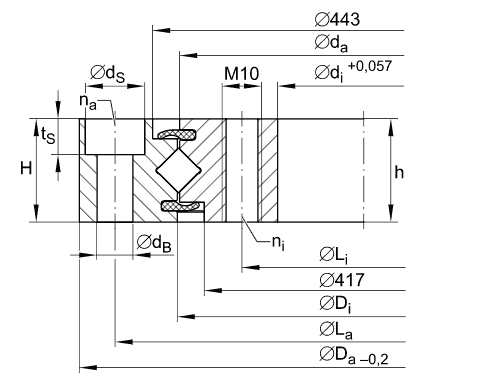

| Part Number | XU080430 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, sealed on both sides |
|
| di | 380mm | |
| Da | 480mm | |
| Di | 430,6mm | |
| da | 429,4mm | |
| dB | 9mm | |
| dS | 15mm | |
| H | 26mm | |
| h | 26mm | |
| La | 462mm | |
| Li | 398mm | |
| na | 20 | Number of fixing holes in outer ring |
| ni | 20 | Number of fixing holes in inner ring |
| tS | 9mm | |
| m | 12kg | Mass |
| Fr per | 35000N | Maximum permissible radial load against friction lock |
| Ca | 97000N | Basic dynamic load rating, axial |
| C0a | 355000N | Basic static load rating, axial |
| Cr | 69000N | Basic dynamic load rating, radial |
| C0r | 175000N | Basic static load rating, radial |
| VSPmin | 0 | Bearing clearance: preload |
| VSPmax | 0,02 | Bearing clearance: preload |
| Without relubrication facility | ||
| Lip seals on both sides |
As INA bearing distributor, Nodes bearings have INA XU080430 crossed roller bearings in stock. XU080430, Crossed roller bearings without gear teeth, sealed on both sides.
