INA XU120222 bearing | 140x300 mm
Also known as : XU120222
- Inside Diameter: 140 mm
- Outside Diameter: 300 mm
- Basic dynamic load rating: 117 kN
- Basic static load rating: 305 kN
INA XU120222 Bearing

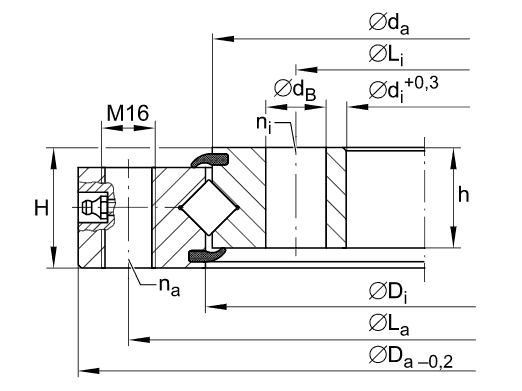

INA XU120222 Bearing details
| Part Number | XU120222 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, sealed on both sides |
|
| di | 140mm | |
| Da | 300mm | |
| Di | 224mm | |
| da | 220mm | |
| dB | 18mm | |
| H | 36mm | |
| h | 30mm | |
| La | 270mm | |
| Li | 170mm | |
| na | 12 | Number of fixing holes in outer ring |
| ni | 12 | Number of fixing holes in inner ring |
| m | 12kg | Mass |
| Fr per | 65500N | Maximum permissible radial load against friction lock |
| Ca | 117000N | Basic dynamic load rating, axial |
| C0a | 305000N | Basic static load rating, axial |
| Cr | 84000N | Basic dynamic load rating, radial |
| C0r | 150000N | Basic static load rating, radial |
| 0,01 | Min. radial bearing clearance | |
| 0,03 | Maximum radial bearing clearance | |
| 0,02 | Min. axial tilting clearance | |
| 0,06 | Maximum axial tilting clearance | |
| 2 | Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference and recessed | |
| Lip seals on both sides |
As INA bearing distributor, Nodes bearings have INA XU120222 crossed roller bearings in stock. XU120222, Crossed roller bearings without gear teeth, sealed on both sides.
