INA XU160405 bearing | 336x474 mm
Also known as : XU160405
- Inside Diameter: 336 mm
- Outside Diameter: 474 mm
- Basic dynamic load rating: 255 kN
- Basic static load rating: 630 kN
INA XU160405 Bearing
INA XU160405 Bearing details
| Part Number | XU160405 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, sealed on both sides |
|
| di | 336mm | |
| Da | 474mm | |
| Da ZT | 472mm |

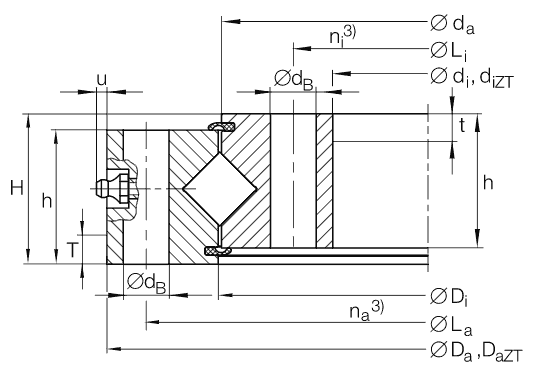

Valid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8 |
| Di | 406mm | |
| da | 404mm | |
| dB | 14mm | |
| di ZT | 338mm |
Valid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| H | 46mm | |
| h | 41mm | |
| La | 450mm | |
| Li | 360mm | |
| na | 30 | Number of fixing holes in outer ring |
| ni | 30 | Number of fixing holes in inner ring |
| T | 7mm | |
| t | 7mm | |
| umax | 3,5mm | Number of teeth |
| m | 25kg | Mass |
| Fr per | 123900N | Maximum permissible radial load against friction lock |
| Ca | 255000N | Basic dynamic load rating, axial |
| C0a | 630000N | Basic static load rating, axial |
| Cr | 181000N | Basic dynamic load rating, radial |
| C0r | 310000N | Basic static load rating, radial |
| VSPmin | 0 | Bearing clearance: preload |
| VSPmax | 0,02 | Bearing clearance: preload |
| 3 | Taper type lubrication nipples, DIN 71412, spaced approximately uniformly on circumference and partially recessed | |
| Lip seals on both sides |
As INA bearing distributor, Nodes bearings have INA XU160405 crossed roller bearings in stock. XU160405, Crossed roller bearings without gear teeth, sealed on both sides.
