INA XU300515 bearing | 384x646 mm
Also known as : XU300515
- Inside Diameter: 384 mm
- Outside Diameter: 646 mm
- Basic dynamic load rating: 650 kN
- Basic static load rating: 1290 kN
INA XU300515 Bearing
INA XU300515 Bearing details
| Part Number | XU300515 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, sealed on both sides |
|
| di | 384mm | |
| Da | 646mm | |
| Da ZT | 644mm |

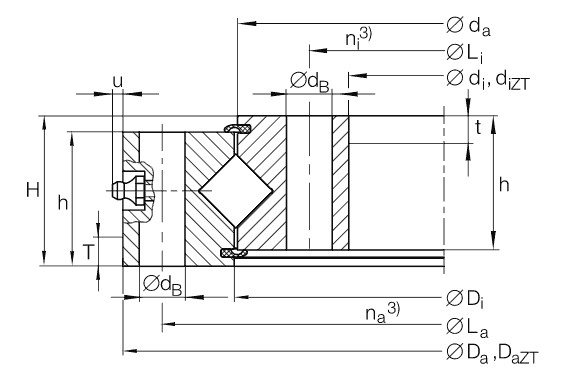

Valid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8 |
| Di | 516mm | |
| da | 514mm | |
| dB | 26mm | |
| di ZT | 386mm |
Valid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| H | 86mm | |
| h | 79mm | |
| La | 598mm | |
| Li | 432mm | |
| na | 18 | Number of fixing holes in outer ring |
| ni | 18 | Number of fixing holes in inner ring |
| T | 12mm | |
| t | 12mm | |
| m | 115kg | Mass |
| Fr per | 313200N | Maximum permissible radial load against friction lock |
| Ca | 650000N | Basic dynamic load rating, axial |
| C0a | 1290000N | Basic static load rating, axial |
| Cr | 465000N | Basic dynamic load rating, radial |
| C0r | 630000N | Basic static load rating, radial |
| VSPmin | 0 | Bearing clearance: preload |
| VSPmax | 0,03 | Bearing clearance: preload |
| 3 | Taper type lubrication nipples, DIN 71412, spaced approximately uniformly on circumference and recessed | |
| Lip seals on both sides |
As INA bearing distributor, Nodes bearings have INA XU300515 crossed roller bearings in stock. XU300515, Crossed roller bearings without gear teeth, sealed on both sides.
