INA XV50 bearing | 50x100 mm
Also known as : XV50
- Inside Diameter: 50 mm
- Outside Diameter: 100 mm
- Basic dynamic load rating: 20.5 kN
- Basic static load rating: 54 kN
INA XV50 Bearing

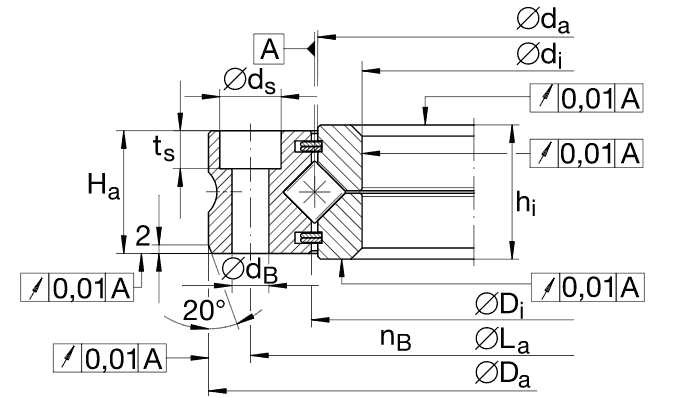

INA XV50 Bearing details
| Part Number | XV50 | |
|---|---|---|
| Type |
Crossed roller bearings without gear teeth, lamellar seals on both sides |
|
| di | 50mm | Tolerance: J6 |
| Da | 100mm | Tolerance: h6 |
| 20° | Chamfer angle | |
| 2mm | Chamfer width/height | |
| Di | 64,5mm | |
| da | 63,5mm | |
| dB | 5,6mm | |
| dS | 10mm | |
| Ha | 16mm | |
| hi | 17mm | |
| La | 85mm | |
| nϑr | 12 | Number of holes per ring |
| tS | 5,4mm | |
| m | 0,67kg | Mass |
| 0,010mm | Running accuracy, axial | |
| 0,01mm | Running accuracy, radial | |
| Fr per | 8180N | Maximum permissible radial load against friction lock |
| Ca | 20500N | Basic dynamic load rating, axial |
| C0a | 54000N | Basic static load rating, axial |
| Cr | 14700N | Basic dynamic load rating, radial |
| C0r | 26500N | Basic static load rating, radial |
| 5971/min | Limiting speed with preload | |
| 11941/min | Limiting speed with clearance |
As INA bearing distributor, Nodes bearings have INA XV50 crossed roller bearings in stock. XV50, Crossed roller bearings without gear teeth, lamellar seals on both sides.
