INA ZKLN3572-2RS-XL Bearing

INA ZKLN3572-2RS-XL bearing | 35x72x34 mm

Also known as : ZKLN3572-2RS-XL

  • Inside Diameter: 35 mm
  • Outside Diameter: 72 mm
  • Width: 34 mm
  • Basic dynamic load rating: 45 kN
  • Basic static load rating: 89 kN

Inquire Now


INA ZKLN3572-2RS-XL Bearing

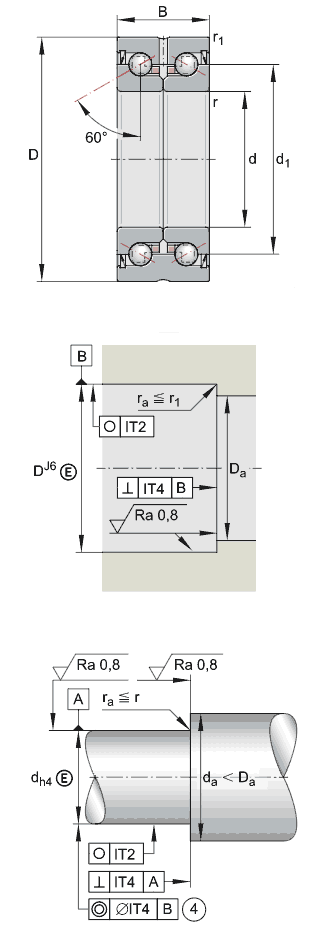

INA ZKLN3572-2RS-XL Bearing details

Number ZKLN3572-2RS-XL
Type Axial angular contact ball bearings
double direction, lip seals on both sides

d 35mm Tolerance: 0/-0,005
D 72mm Tolerance: 0/-0,010
B 34mm Tolerance: 0/-0,25
  60° Contact angle
Da max 62mm
d1 52mm
da min 45mm
r1 min 0,6mm
rmin 0,3mm
m 0,51kg ≈ Mass
Ca 45000N Basic dynamic load rating, axial
C0a 89000N Basic static load rating, axial
Cua 5400N Fatigue limit load, axial
nG Fett 44001/min Limiting speed for grease lubrication
nϑ 20001/min Thermally safe operating speed
MRL 0,6Nm Bearing frictional torque
caL 900N/µm Axial rigidity
ckL 400Nm/mrad Tilting rigidity
Mm 1,51kg * cm^2 Mass moment of inertia for rotating inner ring
  2,5µm Axial runout
The axial runout data for screw drive bearing arrangements are based on the rotating inner ring.
  ZM35 Recommended INA precision locknuts with radial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.
  AM35/58 Recommended INA precision locknuts with axial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.
MA 40Nm Tightening torque

Only valid in conjunction with INA precision locknuts.
Observe the guidelines on locating/locating bearing arrangements.
  10770N Requisite locknut force, axial

The requisite axial locknut force must be observed when using other locknuts.

As INA bearing distributor, Nodes bearings have INA ZKLN3572-2RS-XL ball screw support bearings in stock. ZKLN3572-2RS-XL, Axial angular contact ball bearings.
