KAYDON JU055XP0 thin section bearings
Also known as : JU055XP0
- Inside Diameter: 5.5 inches
- Outside Diameter: 6.25 inches
- Width: 0.5 inches
- Basic dynamic load rating: 1687 lbs
- Basic static load rating: 2830 lbs
KAYDON JU055XP0 Bearing
KAYDON JU055XP0 Bearing details
| Kaydon part number | JU055XP0 |
|---|---|
| Bore | 5.500 inches |
| Outside dia. | 6.250 inches |
| Width | 0.5 inches |
| Land dia. L1 | 5.650 inches |
| Land dia. L2 | 6.043 inches |
| Dynamic radial | 1,687 lbs |
| Dynamic thrust | 2,690 lbs |
| Dynamic moment | 3,717 in-lbs |
| Static radial | 2,830 lbs |
| Static thrust | 7,060 lbs |
| Static moment | 8,300 in-lbs |
| Limiting speeds | 450 RPM |
| Torque max. no load | 5.1 in-oz |
| Approx. weight | 0.74 lbs |
As KAYDON bearings distributor, Nodes bearings have KAYDON JU055XP0 thin section bearings in stock, Reali-Slim sealed bearings, JU series, Type X -- four-point contact.
KAYDON JU055XP0 bearing cross reference
KAYDON JB055CP0 bearing
5.500" x 6.125" x 0.3125"
KAYDON JB055XP0 bearing
5.500" x 6.125" x 0.3125"
KAYDON KA055AR0 bearing
5.500" x 6.000" x 0.25"
KAYDON KA055CP0 bearing
5.500" x 6.000" x 0.25"
KAYDON KA055XP0 bearing
5.500" x 6.000" x 0.25"
KAYDON KB055AR0 bearing
5.500" x 6.125" x 0.3125"
KAYDON KB055CP0 bearing
5.500" x 6.125" x 0.3125"
KAYDON KB055XP0 bearing
5.500" x 6.125" x 0.3125"
KAYDON KC055AR0 bearing
5.500" x 6.250" x 0.375"

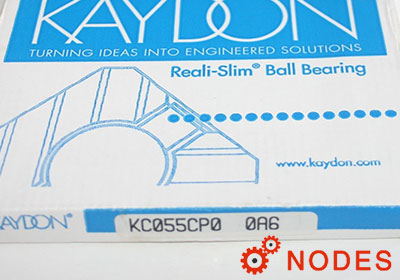

KAYDON KC055CP0 bearing
5.500" x 6.250" x 0.375"
KAYDON KC055XP0 bearing
5.500" x 6.250" x 0.375"
