Load analysis for KAYDON thin section bearings

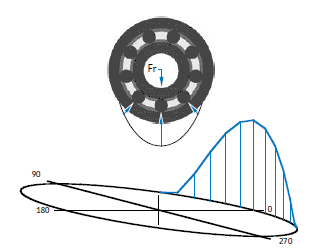

Previous versions of Kaydon catalog have discussed applying the loads from a free body diagram to a Kaydon thin section ball bearing system and solving for each of four reactions. As there are generally three equations (one for radial, one for axial,...

Date: 2021-08-11

Capacity of Kaydon reali-slim bearings

The values in Kaydon radial capacities are consistent with both ABMA Std. 9 and ISO 281 calculations, when the proper assumptions are considered. The increased capacities apply to Kaydon bearings with standard internal clearance. The new values assum...

Date: 2021-07-26

Kaydon sealed reali-slim bearing selections

Seals and shields available for Kaydon thin section ball bearings To realize the full benefits from anti-friction bearings, it is important to keep them clean and well lubricated. Seals and shields, properly designed and mounted, help to accomplish t...

Date: 2021-07-22

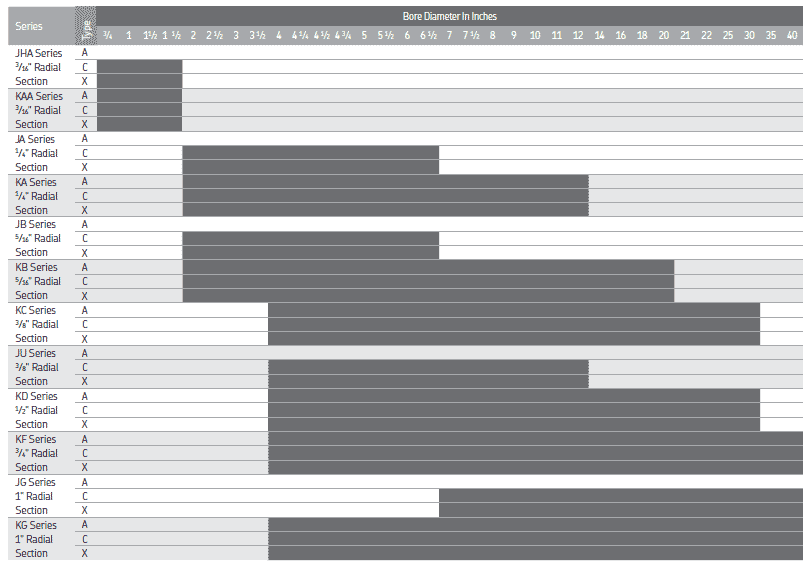

Standard Kaydon Reali-Slim bearings

Standard Kaydon Reali-Slim bearings are listed in the Kaydon bearing size chart . They are manufactured to Kaydon Precision Class 1 and the specifications on the table below. Kaydon Reali-Slim bearings can be optimized for your special requirements....

Date: 2021-07-13

KAYDON Reali-Slim bearing types support all load scenarios

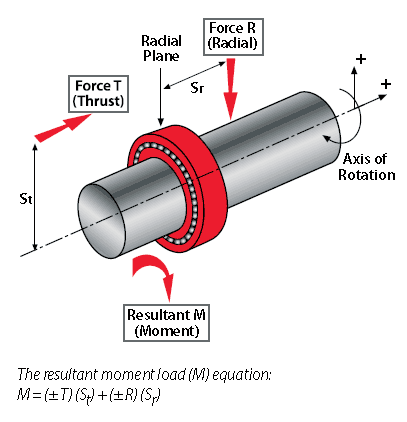

Radial and axial (thrust) loads Kaydon bearings support a shaft or housing to permit their free motion about an axis of rotation. Load can be applied to bearings in either of two basic directions. Radial loads act at right angles to the shaft (bearin...

Date: 2021-07-07

KAYDON Reali-Slim thin section bearings

Many years ago, Kaydon engineers trying to help designers fit assemblies into smaller spaces had an idea: what if the bearing cross-section didnt increase as the bore size got bigger? This led them to develop new bearings with a cross-section that re...

Date: 2021-07-06

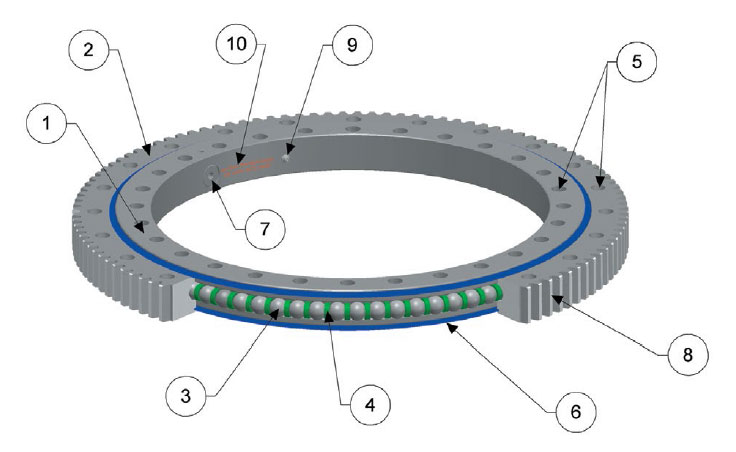

Mounting and lubrication of Kaydon slewing bearing

Mounting arrangement A widely used method of attaching Kaydon slewing ring bearings is to bolt through both races with fasteners spaced uniformly around the entire mounting face. It is recognized, however, that the equipment designer cannot always ac...

Date: 2018-10-31

Torque of KAYDON slewing ring bearing

In most applications of large-diameter Kaydon bearings , the force required to overcome bearing friction, or resistance to rotation, is small compared to that required to overcome the inertia of the mass being supported provided the Kaydon bearing is...

Date: 2018-10-29

Load of KAYDON slewing ring bearing

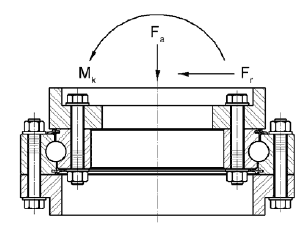

Kaydon slewing ring bearing can be designed for use in applications where loads originate from a single direction or multiple directions relative to its axis of rotation. All of these loads can be resolved into four resultant loads acting on, about,...

Date: 2018-10-24

Selection of KAYDON slewing ring bearing

1, Review the APPLICATION INFORMATION before proceeding with bearing selection. 2, Determine the maximum bearing loads. These loads must include all dynamic and static loads imposed on KAYDON bearing . The loads in turn must be transposed to loads ac...

Date: 2018-10-18

Kaydon open, sealed bearing part number nomenclature

Kaydon Reali-Slim open thin section bearings and sealed bearings, stainless steel bearings, and Endurakote bearings are marked for complete identification with an (8) or (9) digit part number. Positions 18 identify materials, size, type, and precisio...

Date: 2018-09-28

KAYDON thin section bearing precision tolerances

KAYDON type C thin section bearing, Precision class 1 (Ref. ABEC 1F) Bearing size (inch series) Bearing diameters Radial Axial runout Rotating Shaftor Duplex DF Mounting Stationary Shaftor Duplex DB Mounting Bearing Diametral clearance* before instal...

Date: 2018-08-27

KAYDON sealed thin section bearing selection

To realize the full benefits from anti-friction bearings, it is important to keep them clean and well lubricated. Seals and shields, properly designed and mounted, help to accomplish this. In this catalog these terms have the following definitions: S...

Date: 2018-08-27

KAYDON thin section bearings support all load scenarios

KAYDON bearings support a shaft or housing to permit their free motion about an axis of rotation. Load can be applied to bearings in either of two basic directions. Radial loads act at right angles to the shaft (bearings axis of rotation). Axial (thr...

Date: 2018-08-13

KAYDON thin section bearings overview

The inch family of KAYDON Reali-Slim thin section bearings includes seven open series and five sealed series, ranging in bore diameters from 1.000 inch to 40.000 inches. Series range from .187 x .187 inch to 1.000 x 1.000 inch in crosssection. Open b...

Date: 2018-08-13

kaydon thin section bearings lubrication and maintenance

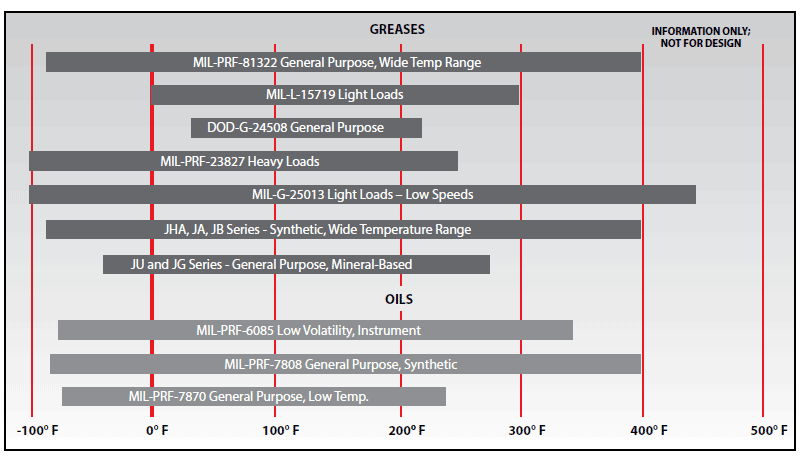

The lubricant in an anti-friction bearing serves to reduce friction and wear between moving parts, to dissipate heat, and to prevent corrosion of critical surfaces. Kaydon recommends the selection of the proper lubricant be based on an evaluation by...

Date: 2018-01-11

kaydon thin section bearing mounting

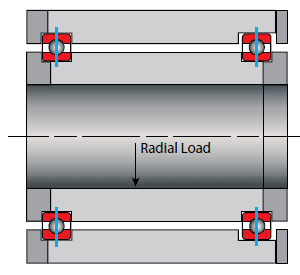

Reali-Slim thin section ball bearings have a crosssection thickness that is much thinner than standard bearings of the same diameter, and are therefore more sensitive to shaft and housing fits. Proper mounting is essential to make sure that the beari...

Date: 2018-01-10

kaydon thin section bearings selection

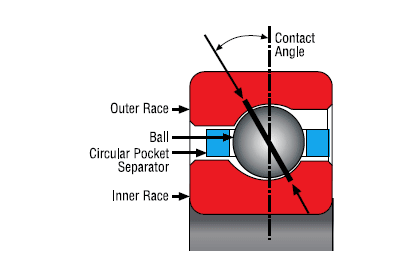

Type C: Radial contact thin section bearings The Type C Radial Contact ball bearing is a single-row radial ball bearing with extra deep ball grooves in both rings (groove depth = 25% of ball diameter). Normally this bearing is assembled by eccentric...

Date: 2018-01-03

kaydon thin section applications

Many years ago, Kaydon engineers trying to help designers fit assemblies into smaller spaces had an idea: what if the bearing cross-section didnt increase as the bore size got bigger? This led them to develop new bearings with a cross-section that re...

Date: 2018-01-03
