KAYDON SA035XP0 Bearing

KAYDON SA035XP0 stainless thin section bearings

Also known as : SA035XP0

  • Inside Diameter: 3.5 inches
  • Outside Diameter: 4 inches
  • Width: 0.25 inches
  • Basic dynamic load rating: 701 lbs
  • Basic static load rating: 2850 lbs

Inquire Now

KAYDON SA035XP0 Bearing

KAYDON SA035XP0 Bearing details

Kaydon part number SA035XP0
Bore 3.500 inches
Outside dia. 4.000 inches
Width 0.25 inches
Land dia. L1 3.686 inches
Land dia. L2 3.814 inches
Dynamic radial 701 lbs
Dynamic thrust 1,110 lbs
Dynamic moment 986 lbs
Static radial 1,140 lbs
Static thrust 2,850 lbs
Static moment 2,130 lbs
Approx. weight 0.180 lbs

As KAYDON bearings distributor, Nodes bearings have KAYDON SA035XP0 Reali-Slim stainless steel thin section bearings in stock, SA series, Type X -- four-point contact.

related articles

KAYDON SA035XP0 bearing cross reference

KAYDON JB035CP0 bearing
3.500" x 4.125" x 0.3125"
KAYDON JB035XP0 bearing
3.500" x 4.125" x 0.3125"

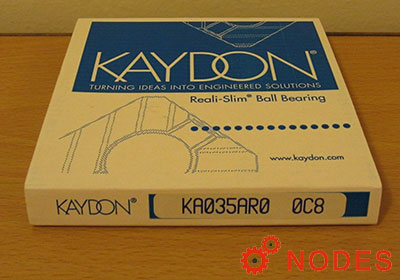

KAYDON KA035AR0 bearing
3.500" x 4.000" x 0.25"

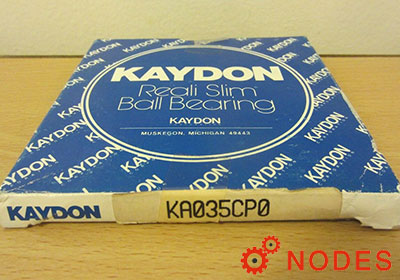

KAYDON KA035CP0 bearing
3.500" x 4.000" x 0.25"
KAYDON KA035XP0 bearing
3.500" x 4.000" x 0.25"
KAYDON KB035AR0 bearing
3.500" x 4.125" x 0.3125"
KAYDON KB035CP0 bearing
3.500" x 4.125" x 0.3125"

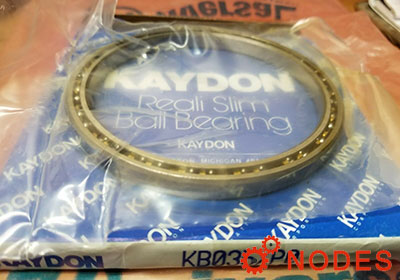

KAYDON KB035XP0 bearing
