NSK HR30217J Bearing

NSK HR30217J roller bearings | 85x150x30.5 mm

Also known as : 30217

  • Inside Diameter: 85 mm
  • Outside Diameter: 150 mm
  • Width: 30.5 mm
  • Basic dynamic load rating: 184 kN
  • Basic static load rating: 233 kN

Inquire Now


NSK HR30217J Bearing

NSK HR30217J Bearing details

model HR30217J
d 85 mm
D 150 mm
T 30.5 mm
B 28 mm
C 24 mm
Cone rmin. 2.5 mm
Cup rmin. 2 mm
Cr 184000 N
18700 kgf
C0r 233000 N
23800 kgf
Limiting speeds
2400 min-1 (Grease)
Limiting speeds
3200 min-1 (Oil)
ISO355
Dimensions Series approx.
3EB
e 0.42 (constant)
y1 1.4 (Axial Load Factors)
y0 0.79 (Axial Load Factors)
Mass 2.12 kg (approx.)

NSK HR30217J roller bearings, tapered roller bearing, Single-Row Metric Design.

NSK HR30217J bearing cross reference

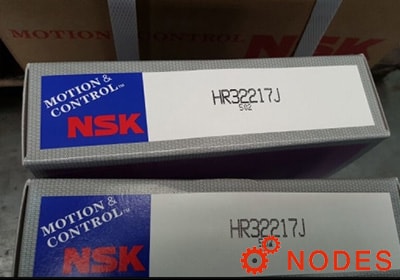

NSK HR32217J bearing
85mm x 150mm x 38.5mm

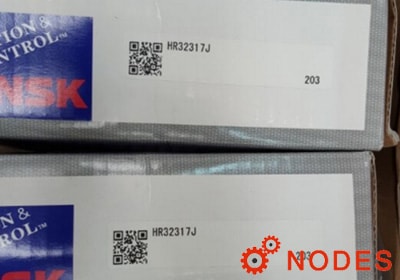

NSK HR32317J bearing
85mm x 180mm x 63.5mm
FAG 30217-A bearing
85mm x 150mm x 30.5mm
FAG 30217-XL bearing
85mm x 150mm x 30.5mm
NTN 30217U bearing
85mm x 150mm x 28.0mm
NSK HR32917J bearing
85mm x 120mm x 23mm
NSK HR32017XJ bearing
85mm x 130mm x 29mm
NSK HR33017J bearing
85mm x 130mm x 36mm
NSK HR33117J bearing
85mm x 140mm x 41mm
NSK 30217CA bearing
85mm x 150mm x 30.5mm
NSK HR33217J bearing
85mm x 150mm x 49mm
