NSK HR30310J Tapered roller bearings
Also known as : HR30310J, 30310
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 29.25 mm
- Basic dynamic load rating: 130 kN
- Basic static load rating: 148 kN
NSK HR30310J Bearing

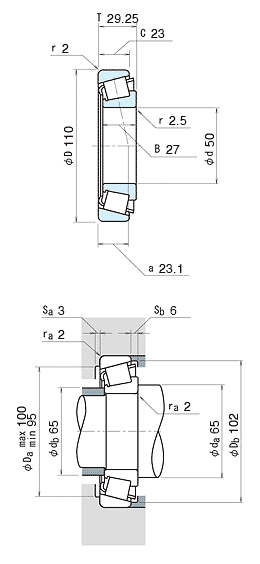

NSK HR30310J Bearing details
| model | HR30310J |
|---|---|
| d | 50 mm |
| D | 110 mm |
| T | 29.25 mm |
| B | 27 mm |
| C | 23 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
130000 N 13300 kgf |
| C0r |
148000 N 15100 kgf |
| Limiting speeds |
3400 min-1 (Grease) |
| Limiting speeds |
4800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2FB |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 1.28 kg (approx.) |
NSK HR30310J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR30310J bearing cross reference
NSK HR32310J bearing
50mm x 110mm x 42.25mm
FAG 30310-A bearing
50mm x 110mm x 29.25mm
SKF 30310 bearing
50mm x 110mm x 29.25mm
NTN 4T-30310 bearing
50mm x 110mm x 27.0mm
NTN 4T-30310D bearing
50mm x 110mm x 27.0mm
NSK HR32910J bearing
50mm x 72mm x 15mm
NSK HR32010XJ bearing
50mm x 80mm x 20mm
NSK HR33010J bearing
50mm x 80mm x 24mm
NSK HR33110J bearing
50mm x 85mm x 26mm
NSK HR30210J bearing
50mm x 90mm x 21.75mm
NSK HR32210CJ bearing
50mm x 90mm x 24.75mm
