NSK HR32310J Tapered roller bearings
Also known as : HR32310J, 32310
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 42.25 mm
- Basic dynamic load rating: 176 kN
- Basic static load rating: 220 kN
NSK HR32310J Bearing

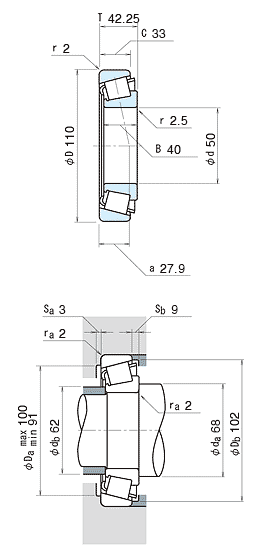

NSK HR32310J Bearing details
| model | HR32310J |
|---|---|
| d | 50 mm |
| D | 110 mm |
| T | 42.25 mm |
| B | 40 mm |
| C | 33 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
176000 N 17900 kgf |
| C0r |
220000 N 22400 kgf |
| Limiting speeds |
3600 min-1 (Grease) |
| Limiting speeds |
4800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2FD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 1.88 kg (approx.) |
NSK HR32310J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32310J bearing cross reference
NSK HR30310J bearing
50mm x 110mm x 29.25mm
FAG 32310-A bearing
50mm x 110mm x 42.25mm
FAG 32310-B bearing
50mm x 110mm x 42.25mm
NTN 32310U bearing
50mm x 110mm x 40.0mm
NSK HR32910J bearing
50mm x 72mm x 15mm
NSK HR32010XJ bearing
50mm x 80mm x 20mm
NSK HR33010J bearing
50mm x 80mm x 24mm
NSK HR33110J bearing
50mm x 85mm x 26mm
NSK HR30210J bearing
50mm x 90mm x 21.75mm
NSK HR32210CJ bearing
50mm x 90mm x 24.75mm
NSK HR32210J bearing
50mm x 90mm x 24.75mm
