NSK HR30316J Tapered roller bearings
Also known as : HR30316J, 30316
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 42.5 mm
- Basic dynamic load rating: 276 kN
- Basic static load rating: 330 kN
NSK HR30316J Bearing

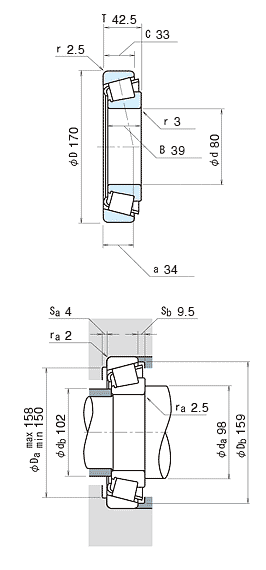

NSK HR30316J Bearing details
| model | HR30316J |
|---|---|
| d | 80 mm |
| D | 170 mm |
| T | 42.5 mm |
| B | 39 mm |
| C | 33 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
276000 N 28200 kgf |
| C0r |
330000 N 33500 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
3000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2GB |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 4.27 kg (approx.) |
NSK HR30316J roller bearings, tapered roller bearing, Single-Row Metric Design.
