NSK HR32216J Tapered roller bearings
Also known as : HR32216J, 32216
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 35.25 mm
- Basic dynamic load rating: 192 kN
- Basic static load rating: 254 kN
NSK HR32216J Bearing

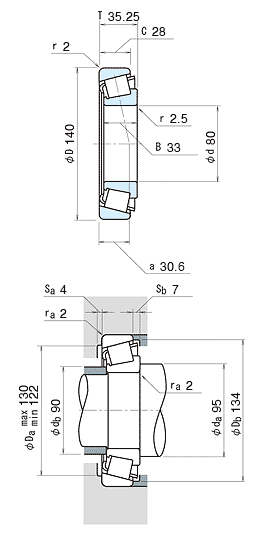

NSK HR32216J Bearing details
| model | HR32216J |
|---|---|
| d | 80 mm |
| D | 140 mm |
| T | 35.25 mm |
| B | 33 mm |
| C | 28 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
192000 N 19600 kgf |
| C0r |
254000 N 25900 kgf |
| Limiting speeds |
2600 min-1 (Grease) |
| Limiting speeds |
3400 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 2.13 kg (approx.) |
NSK HR32216J roller bearings, tapered roller bearing, Single-Row Metric Design.
