NSK HR32015XJ roller bearings | 75x115x25 mm
Also known as : 32015J2/X
- Inside Diameter: 75 mm
- Outside Diameter: 115 mm
- Width: 25 mm
- Basic dynamic load rating: 109 kN
- Basic static load rating: 171 kN
NSK HR32015XJ Bearing
NSK HR32015XJ Bearing details
| model | HR32015XJ |
|---|---|
| d | 75 mm |
| D | 115 mm |
| T | 25 mm |
| B | 25 mm |
| C | 19 mm |
| Cone rmin. | 1.5 mm |
| Cup rmin. | 1.5 mm |
| Cr |
109000 N 11100 kgf |
| C0r |
171000 N 17400 kgf |
| Limiting speeds |
3000 min-1 (Grease) |
| Limiting speeds |
4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
4CC |
| e | 0.46 (constant) |
| y1 | 1.3 (Axial Load Factors) |
| y0 | 0.72 (Axial Load Factors) |
| Mass | 0.925 kg (approx.) |
NSK HR32015XJ roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32015XJ bearing cross reference

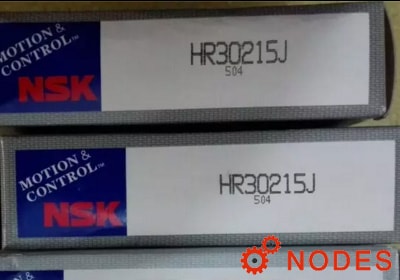

NSK HR30215J bearing
75mm x 130mm x 27.25mm

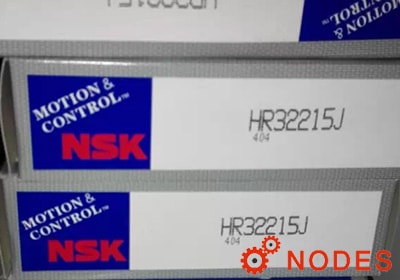

NSK HR32215J bearing
75mm x 130mm x 33.25mm
FAG 32015-X-XL bearing
75mm x 115mm x 25mm

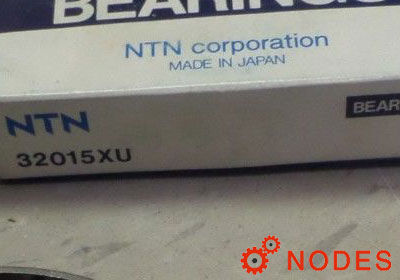

NTN 32015XU bearing
75mm x 115mm x 25.0mm
NSK HR32915J bearing
75mm x 105mm x 20mm
NSK HR33015J bearing
75mm x 115mm x 31mm
NSK HR33115J bearing
75mm x 125mm x 37mm
NSK HR33215J bearing
75mm x 130mm x 41mm
NSK HR30315DJ bearing
75mm x 160mm x 40mm
NSK HR30315J bearing
75mm x 160mm x 40mm
NSK HR31315J bearing
75mm x 160mm x 40mm
