NTN 63/22LLB bearings | 22x56x16mm
Also known as : 63/22LLB
- Inside Diameter: 22 mm
- Outside Diameter: 56 mm
- Width: 16 mm
- Basic dynamic load rating: 18.4 kN
- Basic static load rating: 9.25 kN
NTN 63/22LLB Bearing
NTN 63/22LLB Bearing details
| Part Number | 63/22LLB |
|---|---|
| Brand | NTN |
| Mass | 0.176 kg |
| Boundary dimensions (mm) | |
| Inner dia. (d) | 22 |
| Outer dia. (D) | 56 |
| Width (B) | 16 |
| Chamfer (rs_min) | 1.1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 18.4 |
| Static (Cor) | 9.25 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 1880 |
| Static (Cor) | 945 |
| Limiting speed (min-1) | |
| Grease | 13000 |
| Oil | 15000 |
| Abutment and fillet dimensions (mm) | |
| da min | 28.5 |
| da max | 31 |
| Da max | 49.5 |
| ras max | 1 |
Nodes have NTN 63/22LLB bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 63/22LLB bearing cross reference

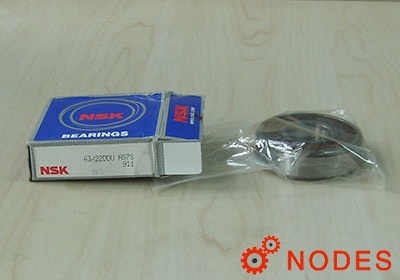

NSK 63/22DDU bearing
