SKF GE110ES Bearing

SKF GE110ES spherical plain bearings | 110x160x70mm

Also known as : GE110ES, GE110DO

  • Inside Diameter: 110 mm
  • Outside Diameter: 160 mm
  • Width: 70 mm
  • Basic dynamic load rating: 655 kN
  • Basic static load rating: 3250 kN

Inquire Now

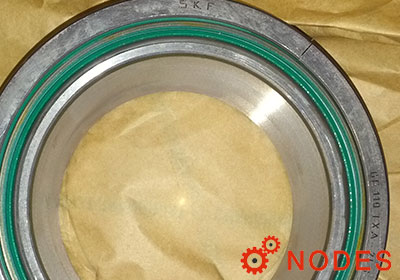

SKF GE110ES Bearing

SKF GE110ES Bearing details

number GE110ES
Type Radial spherical plain bearings
d 110 mm
D 160 mm
B 70 mm
C 55 mm
α 6 °
dk 140 mm
b 11.5 mm
b1 11.5 mm
M 5 mm
r1 min. 1 mm
r2 min. 1 mm
da min. 118 mm
da max. 121 mm
Da min. 133 mm
Da max. 153 mm
ra max. 1 mm
rb max. 1 mm
Calculation data
Basic dynamic load rating C 655 kN
Basic static load rating C0 3250 kN
Specific dynamic load factor K 100 N/mm²
Specific static load factor K0 500 N/mm²
Material constant KM 330
Mass 4.8 kg

As SKF bearing distributor, Nodes bearings have SKF GE110ES spherical plain bearings in stock.

A characteristic feature of SKF steel/steel radial spherical plain bearings is the outer ring, which is intentionally fractured so that it can be sprung apart to enable the inner ring to be inserted
