SKF GEG25ES spherical plain bearings | 25x42x25mm
Also known as : GEG25ES, GE25-LO
- Inside Diameter: 25 mm
- Outside Diameter: 42 mm
- Width: 25 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 240 kN
SKF GEG25ES Bearing

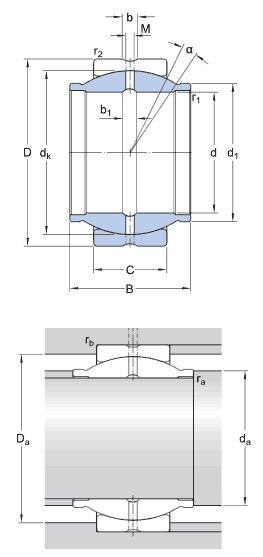

SKF GEG25ES Bearing details
| number | GEG25ES |
|---|---|
| Type | Radial spherical plain bearings |
| d | 25 mm |
| D | 42 mm |
| B | 25 mm |
| C | 16 mm |
| α | 4 ° |
| dk | 35.5 mm |
| d1 ≈ | 30.5 mm |
| b | 3.1 mm |
| b1 | 3.1 mm |
| M | 2 mm |
| r1 min. | 0.6 mm |
| r2 min. | 0.6 mm |
| da min. | 29.2 mm |
| da max. | 30.5 mm |
| Da min. | 33.7 mm |
| Da max. | 39.2 mm |
| ra max. | 0.6 mm |
| rb max. | 0.6 mm |
| Calculation data | |
| Basic dynamic load rating C | 48 kN |
| Basic static load rating C0 | 240 kN |
| Specific dynamic load factor K | 100 N/mm² |
| Specific static load factor K0 | 500 N/mm² |
| Material constant KM | 330 |
| Mass | 0.13 kg |
As SKF bearing distributor, Nodes bearings have SKF GEG25ES spherical plain bearings in stock.
A characteristic feature of SKF steel/steel radial spherical plain bearings is the outer ring, which is intentionally fractured so that it can be sprung apart to enable the inner ring to be inserted
