SKF GEH25C Bearing

SKF GEH25C spherical plain bearings | 25x47x28mm

Also known as : GEH25C, GE25-FW

  • Inside Diameter: 25 mm
  • Outside Diameter: 47 mm
  • Width: 28 mm
  • Basic dynamic load rating: 65.5 kN
  • Basic static load rating: 166 kN

Inquire Now

SKF GEH25C Bearing

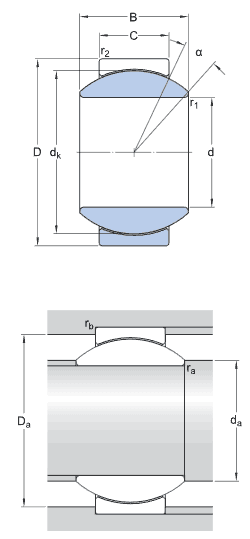

SKF GEH25C Bearing details

number GEH25C
Type maintenance-free radial spherical plain bearings
d 25 mm
D 47 mm
B 28 mm
C 18 mm
α 17 °
dk 40.7 mm
r1 min. 0.6 mm
r2 min. 0.6 mm
da min. 27.9 mm
da max. 29.5 mm
Da min. 38.7 mm
Da max. 44.4 mm
ra max. 0.6 mm
rb max. 0.6 mm
Calculation data
Basic dynamic load rating C 65.5 kN
Basic static load rating C0 166 kN
Specific dynamic load factor K 100 N/mm²
Specific static load factor K0 250 N/mm²
Material constant KM 1400
Mass 0.2 kg

As SKF bearing distributor, Nodes bearings have SKF GEH25C spherical plain bearings in stock.
