SKF GEZ008ES spherical plain bearings | 12.7x22.225x11.1mm
Also known as : GEZ008ES, SBB8
- Inside Diameter: 12.7 mm
- Outside Diameter: 22.225 mm
- Width: 11.1 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 41.5 kN
SKF GEZ008ES Bearing

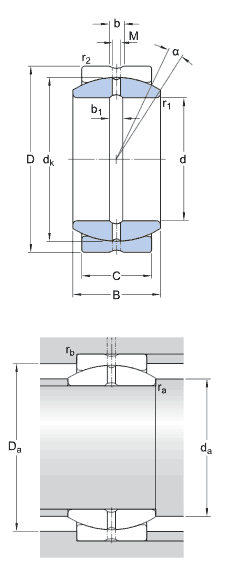

SKF GEZ008ES Bearing details
| number | GEZ008ES |
|---|---|
| Type | Radial spherical plain bearings |
| d | 12.7 mm |
| D | 22.225 mm |
| B | 11.1 mm |
| C | 9.525 mm |
| α | 6 ° |
| dk | 18.263 mm |
| b | 2.6 mm |
| b1 | 2.5 mm |
| M | 1.5 mm |
| r1 min. | 0.2 mm |
| r2 min. | 0.6 mm |
| da min. | 13.7 mm |
| da max. | 14.5 mm |
| Da min. | 17.3 mm |
| Da max. | 19.9 mm |
| ra max. | 0.2 mm |
| rb max. | 0.6 mm |
| Calculation data | |
| Basic dynamic load rating C | 14 kN |
| Basic static load rating C0 | 41.5 kN |
| Specific dynamic load factor K | 100 N/mm² |
| Specific static load factor K0 | 300 N/mm² |
| Material constant KM | 330 |
| Mass | 0.02 kg |
As SKF bearing distributor, Nodes bearings have SKF GEZ008ES spherical plain bearings in stock.
A characteristic feature of SKF steel/steel radial spherical plain bearings is the outer ring, which is intentionally fractured so that it can be sprung apart to enable the inner ring to be inserted
