SKF PRM353930 bushing bearing | Dimension 35x39x30mm
Also known as : PRM353930
- Inside Diameter: 35 mm
- Outside Diameter: 39 mm
- Width: 30 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PRM353930 Bearing
SKF PRM353930 Bearing details
| number | PRM 353930 |
|---|---|
| Type | SKF wrapped bronze bushings |

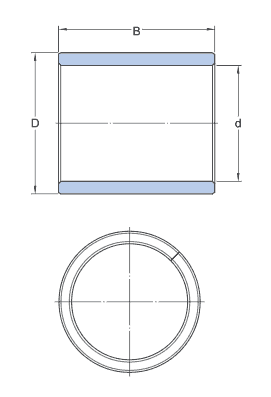

| Dimensions | |
| d | 35 mm |
| D | 39 mm |
| B | 30 mm |
| Recommended fits | |
| Tolerance shaft | f7 m/s |
| Tolerance housing | H7 m/s |
| Calculation data | |
| Specific dynamic load factor, K | 40 N/mm2 |
| Specific static load factor, K0 | 120 N/mm2 |
| Permissible sliding velocity, v, min. | 0 m/s |
| Permissible sliding velocity, v, max. | 1 m/s |
| Coefficient of friction, u, min. | 0.08 |
| Coefficient of friction, u, max. | 0.15 |
| Mass bushing | 0.0059 kg |
Nodes have SKF PRM 353930 bushings in stock, wrapped bronze bushings, PRM 353930 bushings' dimensions: 35 x 39 x 30mm.
