SKF SA25ES rod ends | d:25mm, d2:65mm, l2:128mm
Also known as : SA25ES, GAR25-DO
- d: 25 mm
- d2: 65 mm
- Height: 128 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 78 kN
SKF SA25ES Bearing

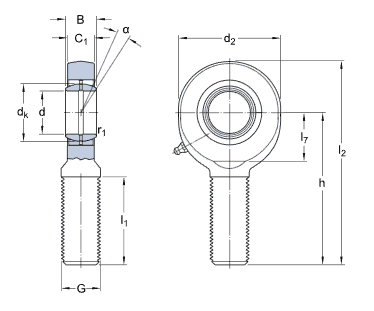

SKF SA25ES Bearing details
| number | SA25ES | |
|---|---|---|
| Type | Rod ends with a male thread | |
| d | 25 mm | |
| d2 max. | 65 mm | |
| B | 20 mm | |
| G | M 24x2 | |
| C1 max. | 18 mm | |
| h | 94 mm | |
| α | 7 ° | |
| dk | 35.5 mm | |
| l1 min. | 53 mm | |
| l2 max. | 128 mm | |
| l7 min. | 30 mm | |
| r1 min. | 0.6 mm | |
| Calculation data | ||
| Basic dynamic load rating C | 48 kN | |
| Basic static load rating C0 | 78 kN | |
| Specific dynamic load factor K | 100 N/mm² | |
| Material constant KM | 330 | |
| Mass | 0.53 kg | |
As SKF bearing distributor, Nodes bearings have SKF SA25ES rod ends bearings with a male thread in stock.
