SKF SAKB6F rod ends | d:6mm, d2:21mm, l2:48mm
Also known as : SAKB6F, GAKR6F
- d: 6 mm
- d2: 21 mm
- Height: 48 mm
- Basic dynamic load rating: 4.25 kN
- Basic static load rating: 6.8 kN
SKF SAKB6F Bearing

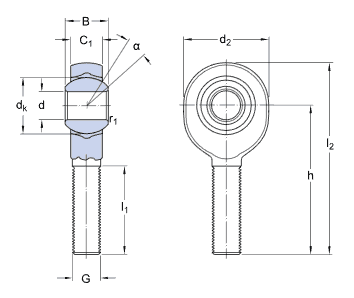

SKF SAKB6F Bearing details
| number | SAKB6F | |
|---|---|---|
| Type | Rod ends with a male thread | |
| d | 6 mm | |
| d2 max. | 21 mm | |
| B | 9 mm | |
| G | M 6 | |
| C1 max. | 7.5 mm | |
| h | 36 mm | |
| α | 17 ° | |
| dk | 12.7 mm | |
| l1 min. | 21 mm | |
| l2 max. | 48 mm | |
| r1 min. | 0.3 mm | |
| Calculation data | ||
| Basic dynamic load rating C | 4.25 kN | |
| Basic static load rating C0 | 6.8 kN | |
| Specific dynamic load factor K | 50 N/mm² | |
| Material constant KM | 530 | |
| Mass | 0.021 kg | |
As SKF bearing distributor, Nodes bearings have SKF SAKB6F rod ends bearings with a male thread in stock.
