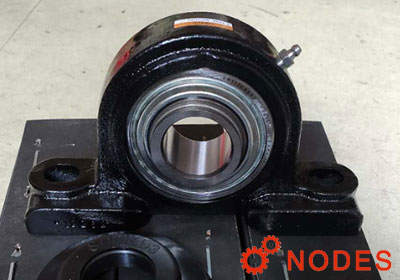

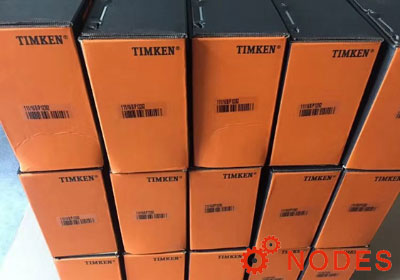

Nodes have TIMKEN-Fafnir 1 11/16 B/P 12262 Pillow block bearings in stock.
- Part Number: 1 11/16 B/P 12262
- Brand: TIMKEN Fafnir
- Bearing Number: GN111KRRB2 FS615
- Housing Number: 12262
- 2 Bolt Mount
- 1-11/16 inches bore

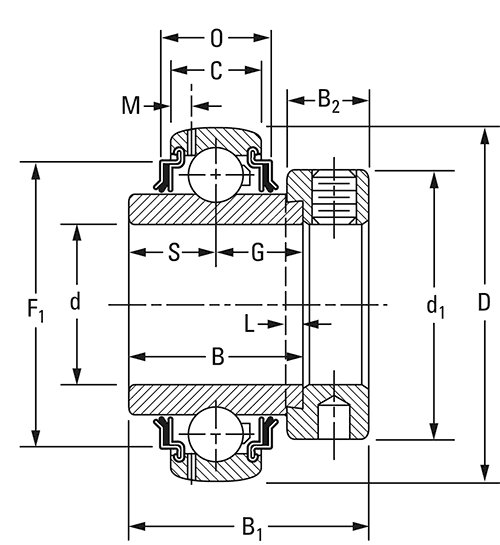

GN111KRRB Fafnir Eccentric locking collar ball bearings
| Bearing Number | GN111KRRB |
|---|---|
| Brand | TIMKEN |
| Shaft Size d |
1 11/16 in 42.9 mm |
| Bore Type | Cylindrical bore |
| Material | Bearing Steel |
| Weight | 0.2 Kg |
| Outside Diameter D | 1000.000 mm |
| Inner Ring Width B | 42.86 mm |
| Outside Ring Width C | 27.000 mm |
| Center of Bearing from End S | 19.8 mm |
| Dimension S1 | 38.9 mm |
| Set Screw Size | 3/8-16 |
| Static Load Rating | 31700 N |
| Dynamic Load Rating | 58500 N |
TIMKEN
Timken engineered bearings feature precision tolerances, proprietary internal geometries and quality materials. TIMKEN housed unit bearings deliver strong performance, consistently and reliably.
Timken Fafnir Ball Bearing Housed Units
Lock in Productivity. Operate Cleaner.
Safeguard system performance and reduce costly wear and tear with the superior contamination protection. Multiple sealing and locking solutions, including eccentric and set screw, provide support for demanding applications. Set screw solutions feature Shaft Guard Technology which eliminates shaft damage from screws.
TIMKEN-Fafnir 1 11/16 B/P 12262 Pillow block bearings
1 11/16 B/P 12262 Pillow block bearings

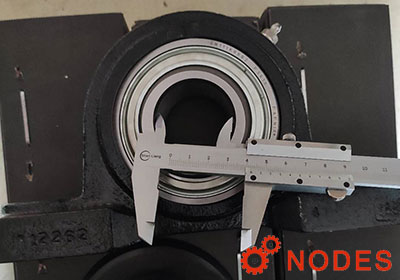

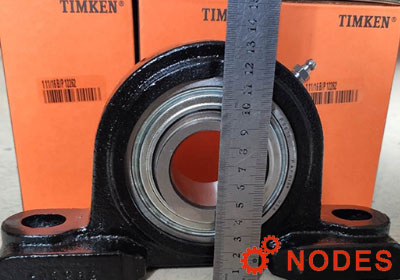

The center height of 1 11/16 B/P 12262 is 66.68 mm.
The shaft size of 1 11/16 B/P 12262 is 1 11/16 in (42.8625 mm).

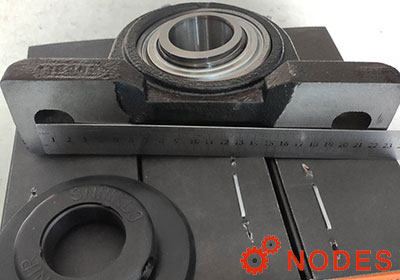

The bolt hole spacing of 1 11/16 B/P 12262 is 190.5 mm.
