TIMKEN NJ226EMA Bearing

TIMKEN NJ226EMA Cylindrical Roller Bearings | 130x230x40mm

Also known as : NJ226EMA

  • Inside Diameter: 130 mm
  • Outside Diameter: 230 mm
  • Width: 40 mm
  • Basic dynamic load rating: 411 kN
  • Basic static load rating: 464 kN

Inquire Now

TIMKEN NJ226EMA Bearing

TIMKEN NJ226EMA Bearing details

Bearing Number NJ226EMA
Brand TIMKEN
Type Cylindrical roller bearings
Design Units METRIC
Bearing Weight 7.3 Kg
16.1 lb
Type NJ
Tapered Bore N
d - Bore 130 mm
5.1181 in
D - Outer Diameter 230.000 mm
9.0551 in
C - Inner Ring Width 40.000 mm
1.5748 in
B - Outer Ring Width 40.000 mm
1.5748 in
C0 - Static Radial Rating 464000 N
104000 lbf
C - Dynamic Radial Rating1 411000 N
92400 lbf
Reference Thermal Speed Rating (Grease) 2400
Reference Thermal Speed Rating (Oil)2 2800
Cg - Geometry Factor3 0.113
R - Inner Ring "To Clear" Radius4 2.500 mm
0.100 in
r - Outer Ring "To Clear" Radius5 2.500 mm
0.100 in
da - Inner Ring Backing Diameter 148.000 mm
5.800 in
Da - Outer Ring Backing Diameter 0.000 mm
0.000 in

1 Based on 1 X 106 L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.

As TIMKEN bearing distributor, Nodes bearings have TIMKEN NJ226EMA bearings in stock.

TIMKEN NJ226EMA bearing cross reference

FAG NJ226-E-XL-TVP2 bearing
130mm x 230mm x 40mm

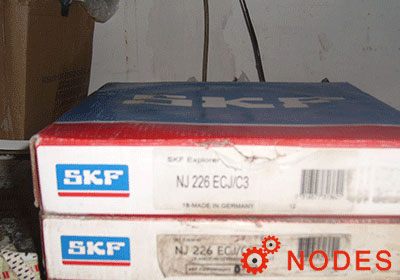

SKF NJ226ECJ/C3 bearing
130mm x 230mm x 40mm
TIMKEN NJ2226EMA bearing
130mm x 230mm x 64mm
