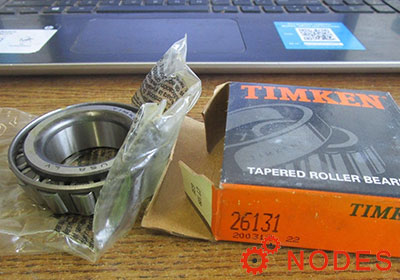

TIMKEN 26131-26282D Bearing

TIMKEN 26131-26282D bearings | 33.338x71.438x42.863mm

Also known as : 26131-26282D

  • Inside Diameter: 33.338 mm
  • Outside Diameter: 71.438 mm
  • Width: 42.863 mm
  • Basic dynamic load rating: 121 kN
  • Basic static load rating: 31.4 kN

Inquire Now


TIMKEN 26131-26282D Bearing

TIMKEN 26131-26282D Bearing details

TIMKEN Part Number 26131-26282D
Brand TIMKEN
Type Tapered Roller Bearings - TDO (Tapered Double Inner)
Series 26000
Cone Part Number 26131
Cup Part Number 26282D
Design Units Imperial
Bearing Weight 1.65 lb
0.748 Kg
Cage Type Stamped Steel
Ab - Cage-Cone Frontface Clearance 0.09 in
2.3 mm
Alternate Part Name 26131-26282D
d - Bore 1.3125 in
33.338 mm
D - Cup Outer Diameter 2.8125 in
71.438 mm
B - Cone Width 0.7450 in
18.923 mm
C - Double Cup Width 1.4375 in
36.513 mm
T - Bearing Width across Cones 1.6875 in
42.863 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) 4060 lbf

18100 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) 27300 lbf
121000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) 7070 lbf
31400 N
Ca90 - Dynamic Thrust Rating (90 million revolutions) 2500 lbf
11100 N
K - Factor 1.62
e - ISO Factor 0.36
Y1 - ISO Factor 1.87
Y2 - ISO Factor 2.79
G1 - Heat Generation Factor (Roller-Raceway) 16.1
G2 - Heat Generation Factor (Rib-Roller End) 10.1
Cg - Geometry Factor 0.063
R - Cone Backface "To Clear" Radius 0.14 in
3.600 mm
r - Cup Frontface "To Clear" Radius 0.02 in
0.400 mm
db - Cone Backface Backing Diameter 1.75 in
44.5 mm
Da - Cup Frontface Backing Diameter 2.60 in
65.02 mm
Aa - Cage-Cone Backface Clearance 0 in
0 mm

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 26131-26282D Tapered Roller Bearings - TDO (Tapered Double Inner) in stock.

TIMKEN bearing cross reference

TIMKEN 26131-26274 bearing
33.338mm x 69.723mm x 19.050mm
TIMKEN 26131-26283 bearing
33.338mm x 71.999mm x 18.999mm
TIMKEN 26131-26283-S bearing
33.338mm x 71.999mm x 18.999mm
TIMKEN 26131-26283-B bearing
33.338mm x 71.999mm x 7.087mm
TIMKEN 26131-26284D bearing
33.338mm x 71.973mm x 42.761mm
