TIMKEN 19152D - 19283X Bearing

TIMKEN 19152D - 19283X Tapered Roller Bearings

Also known as : 19152D - 19283X

  • Inside Diameter: 38.1 mm
  • Outside Diameter: 71.999 mm
  • Width: 49.2 mm
  • Basic dynamic load rating: 88.3 kN
  • Basic static load rating: 22.9 kN

Inquire Now


TIMKEN 19152D - 19283X Bearing

TIMKEN 19152D - 19283X Bearing details

Bearing Number 19152D - 19283X
Brand TIMKEN

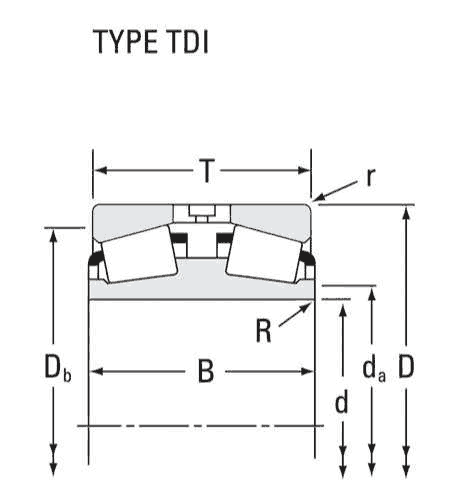

Type Tapered Roller Bearings - TDI (Tapered Double Inner)
Series 19000
Cone Part Number 19152D
Cup Part Number 19283X
Design Units Imperial
Bearing Weight 1.5 lb
0.70 Kg
Cage Type Stamped Steel
Aa - Cage-Cone Backface Clearance 0 in
0 mm
d - Bore 1.5 in
38.1 mm
D - Cup Outer Diameter 2.8346 in
71.999 mm
B - Double Cone Width 1.9370 in
49.200 mm
C - Cup Width 0.5625 in
14.288 mm
T - Bearing Width across Cups 1.5391 in
39.093 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) 2960 lbf

13100 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) 19800 lbf
88300 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) 5150 lbf
22900 N
Ca90 - Dynamic Thrust Rating (90 million revolutions) 2250 lbf
10000 N
K - Factor 1.31
e - ISO Factor 0.97
Y1 - ISO Factor 0.69
Y2 - ISO Factor 1.03
Cg - Geometry Factor 0.0694
R - Cone Frontface "To Clear" Radius 0.030 in
0.80 mm
r - Cup Backface "To Clear" Radius 0.08 in
2 mm
da - Cone Frontface Backing Diameter 1.71 in
43.40 mm
Db - Cup Backface Backing Diameter 2.44 in
62.00 mm
Ab - Cage-Cone Frontface Clearance -0.13 in
-3.3 mm

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 19152D - 19283X Tapered Roller Bearings - TDI (Tapered Double Inner) in stock.
