INA axial angular contact ball bearings for screw drives

INA ball thrust bearings

INA axial angular contact ball bearings for screw drives are precision bearings for screw drive bearing arrangements. Depending on the series, they can support radial forces as well as axial forces in one or both directions.

Axial angular contact ball bearings ZKLF and ZKLN are supplied in the X-life design. As a result of increased raceway accuracy and raceway quality, there is a significant reduction in the stress conditions present on the rolling elements and raceways under the same load, compared to the standard bearings.

Displaying 27 INA axial angular contact ball bearings for screw drives.

INA

INA ZKLF2068-2RS-XL bearing | 20x68x28 mm

Nodes bearings have INA ZKLF2068-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF2068-2RS-XL bearing dimensions: 20x68x28 mm, Cr: 28500N, C0r: 47000N.

Brand: INA
Inside Diameter: 20 mm
Outside Diameter: 68 mm
Width: 28 mm
Basic dynamic load rating: 28.5 kN
Basic static load rating: 28.5 kN

INA

INA ZKLF2575-2RS-XL bearing | 25x75x28 mm

Nodes bearings have INA ZKLF2575-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF2575-2RS-XL bearing dimensions: 25x75x28 mm, Cr: 30500N, C0r: 55000N.

Brand: INA
Inside Diameter: 25 mm
Outside Diameter: 75 mm
Width: 28 mm
Basic dynamic load rating: 30.5 kN
Basic static load rating: 30.5 kN

INA

INA ZKLF3080-2RS-XL bearing | 30x80x28 mm

Nodes bearings have INA ZKLF3080-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF3080-2RS-XL bearing dimensions: 30x80x28 mm, Cr: 32000N, C0r: 64000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 80 mm
Width: 28 mm
Basic dynamic load rating: 32 kN
Basic static load rating: 32 kN

INA

INA ZKLF30100-2RS-XL bearing | 30x100x38 mm

Nodes bearings have INA ZKLF30100-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF30100-2RS-XL bearing dimensions: 30x100x38 mm, Cr: 65000N, C0r: 108000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 100 mm
Width: 38 mm
Basic dynamic load rating: 65 kN
Basic static load rating: 65 kN

INA

INA ZKLF40100-2RS-XL bearing | 40x100x34 mm

Nodes bearings have INA ZKLF40100-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF40100-2RS-XL bearing dimensions: 40x100x34 mm, Cr: 47500N, C0r: 101000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 100 mm
Width: 34 mm
Basic dynamic load rating: 47.5 kN
Basic static load rating: 47.5 kN

INA

INA ZKLF50115-2RS-XL bearing | 50x115x34 mm

Nodes bearings have INA ZKLF50115-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF50115-2RS-XL bearing dimensions: 50x115x34 mm, Cr: 51000N, C0r: 126000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 115 mm
Width: 34 mm
Basic dynamic load rating: 51 kN
Basic static load rating: 51 kN

INA

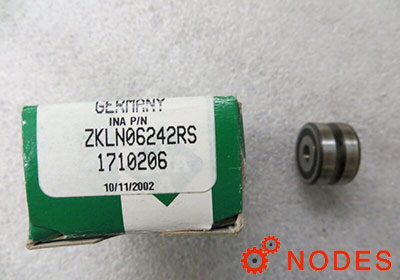

INA ZKLN0624-2RS-XL bearing | 6x24x15 mm

Nodes bearings have INA ZKLN0624-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN0624-2RS-XL bearing dimensions: 6x24x15 mm, Cr: 7600N, C0r: 8500N.

Brand: INA
Inside Diameter: 6 mm
Outside Diameter: 24 mm
Width: 15 mm
Basic dynamic load rating: 7.6 kN
Basic static load rating: 7.6 kN

INA

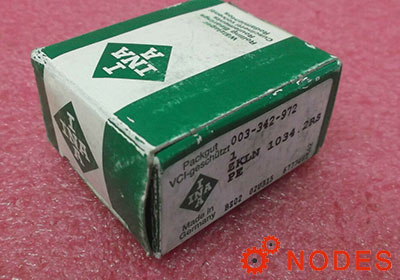

INA ZKLN1034-2RS-XL bearing | 10x34x20 mm

Nodes bearings have INA ZKLN1034-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN1034-2RS-XL bearing dimensions: 10x34x20 mm, Cr: 14700N, C0r: 18800N.

Brand: INA
Inside Diameter: 10 mm
Outside Diameter: 34 mm
Width: 20 mm
Basic dynamic load rating: 14.7 kN
Basic static load rating: 14.7 kN

INA

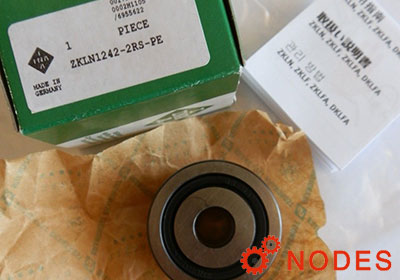

INA ZKLN1242-2RS-XL bearing | 12x42x25 mm

Nodes bearings have INA ZKLN1242-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN1242-2RS-XL bearing dimensions: 12x42x25 mm, Cr: 18600N, C0r: 24700N.

Brand: INA
Inside Diameter: 12 mm
Outside Diameter: 42 mm
Width: 25 mm
Basic dynamic load rating: 18.6 kN
Basic static load rating: 18.6 kN

INA

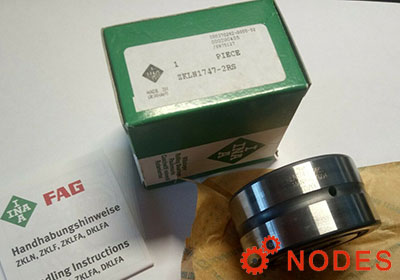

INA ZKLN1747-2RS-XL bearing | 17x47x25 mm

Nodes bearings have INA ZKLN1747-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN1747-2RS-XL bearing dimensions: 17x47x25 mm, Cr: 20700N, C0r: 31000N.

Brand: INA
Inside Diameter: 17 mm
Outside Diameter: 47 mm
Width: 25 mm
Basic dynamic load rating: 20.7 kN
Basic static load rating: 20.7 kN

INA

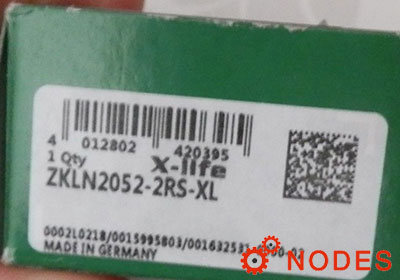

INA ZKLN2052-2RS-XL bearing | 20x52x28 mm

Nodes bearings have INA ZKLN2052-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN2052-2RS-XL bearing dimensions: 20x52x28 mm, Cr: 28500N, C0r: 47000N.

Brand: INA
Inside Diameter: 20 mm
Outside Diameter: 52 mm
Width: 28 mm
Basic dynamic load rating: 28.5 kN
Basic static load rating: 28.5 kN

INA

INA ZKLN2557-2RS-XL bearing | 25x57x28 mm

Nodes bearings have INA ZKLN2557-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN2557-2RS-XL bearing dimensions: 25x57x28 mm, Cr: 30500N, C0r: 55000N.

Brand: INA
Inside Diameter: 25 mm
Outside Diameter: 57 mm
Width: 28 mm
Basic dynamic load rating: 30.5 kN
Basic static load rating: 30.5 kN

INA

INA ZKLN3062-2RS-XL bearing | 30x62x28 mm

Nodes bearings have INA ZKLN3062-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN3062-2RS-XL bearing dimensions: 30x62x28 mm, Cr: 32000N, C0r: 64000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 62 mm
Width: 28 mm
Basic dynamic load rating: 32 kN
Basic static load rating: 32 kN

INA

INA ZKLN3072-2RS-XL bearing | 30x72x38 mm

Nodes bearings have INA ZKLN3072-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN3072-2RS-XL bearing dimensions: 30x72x38 mm, Cr: 65000N, C0r: 108000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 72 mm
Width: 38 mm
Basic dynamic load rating: 65 kN
Basic static load rating: 65 kN

INA

INA ZKLN4075-2RS-XL bearing | 40x75x34 mm

Nodes bearings have INA ZKLN4075-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN4075-2RS-XL bearing dimensions: 40x75x34 mm, Cr: 47500N, C0r: 101000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 75 mm
Width: 34 mm
Basic dynamic load rating: 47.5 kN
Basic static load rating: 47.5 kN

INA

INA ZKLN5090-2RS-XL bearing | 50x90x34 mm

Nodes bearings have INA ZKLN5090-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN5090-2RS-XL bearing dimensions: 50x90x34 mm, Cr: 51000N, C0r: 126000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 90 mm
Width: 34 mm
Basic dynamic load rating: 51 kN
Basic static load rating: 51 kN

INA

INA ZKLF1762-2RS-XL bearing | 17x62x25 mm

Nodes bearings have INA ZKLF1762-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF1762-2RS-XL bearing dimensions: 17x62x25 mm, Cr: 20700N, C0r: 31000N.

Brand: INA
Inside Diameter: 17 mm
Outside Diameter: 62 mm
Width: 25 mm
Basic dynamic load rating: 20.7 kN
Basic static load rating: 20.7 kN

INA

INA ZKLF1255-2RS-XL bearing | 12x55x25 mm

Nodes bearings have INA ZKLF1255-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF1255-2RS-XL bearing dimensions: 12x55x25 mm, Cr: 18600N, C0r: 24700N.

Brand: INA
Inside Diameter: 12 mm
Outside Diameter: 55 mm
Width: 25 mm
Basic dynamic load rating: 18.6 kN
Basic static load rating: 18.6 kN

INA

INA ZKLF3590-2RS-XL bearing | 35x90x34 mm

Nodes bearings have INA ZKLF3590-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF3590-2RS-XL bearing dimensions: 35x90x34 mm, Cr: 45000N, C0r: 89000N.

Brand: INA
Inside Diameter: 35 mm
Outside Diameter: 90 mm
Width: 34 mm
Basic dynamic load rating: 45 kN
Basic static load rating: 45 kN

INA

INA ZKLF40115-2RS-XL bearing | 40x115x46 mm

Nodes bearings have INA ZKLF40115-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF40115-2RS-XL bearing dimensions: 40x115x46 mm, Cr: 79000N, C0r: 149000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 115 mm
Width: 46 mm
Basic dynamic load rating: 79 kN
Basic static load rating: 79 kN

INA

INA ZKLF50140-2RS-XL bearing | 50x140x54 mm

Nodes bearings have INA ZKLF50140-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF50140-2RS-XL bearing dimensions: 50x140x54 mm, Cr: 125000N, C0r: 250000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 140 mm
Width: 54 mm
Basic dynamic load rating: 125 kN
Basic static load rating: 125 kN

INA

INA ZKLN0832-2RS-XL bearing | 8x32x20 mm

Nodes bearings have INA ZKLN0832-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN0832-2RS-XL bearing dimensions: 8x32x20 mm, Cr: 13800N, C0r: 16300N.

Brand: INA
Inside Diameter: 8 mm
Outside Diameter: 32 mm
Width: 20 mm
Basic dynamic load rating: 13.8 kN
Basic static load rating: 13.8 kN

INA

INA ZKLN1545-2RS-XL bearing | 15x45x25 mm

Nodes bearings have INA ZKLN1545-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN1545-2RS-XL bearing dimensions: 15x45x25 mm, Cr: 19600N, C0r: 28000N.

Brand: INA
Inside Diameter: 15 mm
Outside Diameter: 45 mm
Width: 25 mm
Basic dynamic load rating: 19.6 kN
Basic static load rating: 19.6 kN

INA

INA ZKLF1560-2RS-XL bearing | 15x60x25 mm

Nodes bearings have INA ZKLF1560-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLF1560-2RS-XL bearing dimensions: 15x60x25 mm, Cr: 19600N, C0r: 28000N.

Brand: INA
Inside Diameter: 15 mm
Outside Diameter: 60 mm
Width: 25 mm
Basic dynamic load rating: 19.6 kN
Basic static load rating: 19.6 kN

INA

INA ZKLN3572-2RS-XL bearing | 35x72x34 mm

Nodes bearings have INA ZKLN3572-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN3572-2RS-XL bearing dimensions: 35x72x34 mm, Cr: 45000N, C0r: 89000N.

Brand: INA
Inside Diameter: 35 mm
Outside Diameter: 72 mm
Width: 34 mm
Basic dynamic load rating: 45 kN
Basic static load rating: 45 kN

INA

INA ZKLN4090-2RS-XL bearing | 40x90x46 mm

Nodes bearings have INA ZKLN4090-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN4090-2RS-XL bearing dimensions: 40x90x46 mm, Cr: 79000N, C0r: 149000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 90 mm
Width: 46 mm
Basic dynamic load rating: 79 kN
Basic static load rating: 79 kN

INA

INA ZKLN50110-2RS-XL bearing | 50x110x54 mm

Nodes bearings have INA ZKLN50110-2RS-XL ball screw support bearings in stock, Axial angular contact ball bearings, ZKLN50110-2RS-XL bearing dimensions: 50x110x54 mm, Cr: 125000N, C0r: 250000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 110 mm
Width: 54 mm
Basic dynamic load rating: 125 kN
Basic static load rating: 125 kN
