NSK 51110 Thrust Ball Bearings
Also known as : 51110
- Inside Diameter: 50 mm
- Outside Diameter: 70 mm
- Width: 14 mm
- Basic dynamic load rating: 29 kN
- Basic static load rating: 75.5 kN
NSK 51110 Bearing
NSK 51110 Bearing details
| model | 51110 |
|---|---|
| d | 50 mm |
| D | 70 mm |
| T | 14 mm |
| d1 | 70 mm |
| D1 | 52 mm |
| rmin. | 0.6 mm |
| Ca | 29000 N |
| C0a | 75500 N |
| Limiting speeds | 3200 min-1 (Grease) |
| Limiting speeds | 4800 min-1 (Oil) |
| da | 62 mm |
| Da | 58 mm |
| ra | 0.6 mm |
| Mass | 0.153 kg (approx.) |
As a NSK Bearing distributor, Nodes bearings have NSK 51110 thrust ball bearings in stock. more related bearings: Thrust ball bearings.
NSK 51110 bearing cross reference

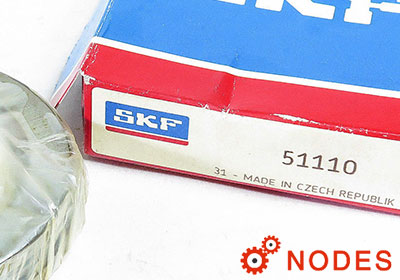

SKF 51110 bearing
50mm x 70mm x 14mm
NSK 51210 bearing
50mm x 78mm x 22mm
NSK 51310 bearing
50mm x 95mm x 31mm
NSK 51410 bearing
50mm x 110mm x 43mm
NSK 53210 bearing
50mm x 78mm x 23.5mm
NSK 53310 bearing
50mm x 95mm x 34.3mm
NSK 53410 bearing
50mm x 110mm x 45.6mm
NSK 53210U bearing
50mm x 78mm x 26mm
NSK 53310U bearing
50mm x 95mm x 37mm
NSK 53410U bearing
50mm x 110mm x 50mm
